SKYLAB ARM Cortex-M3 IEEE802.15.4-2011 UART IIC 2.8-3.6V Bluetooth UWB combination module

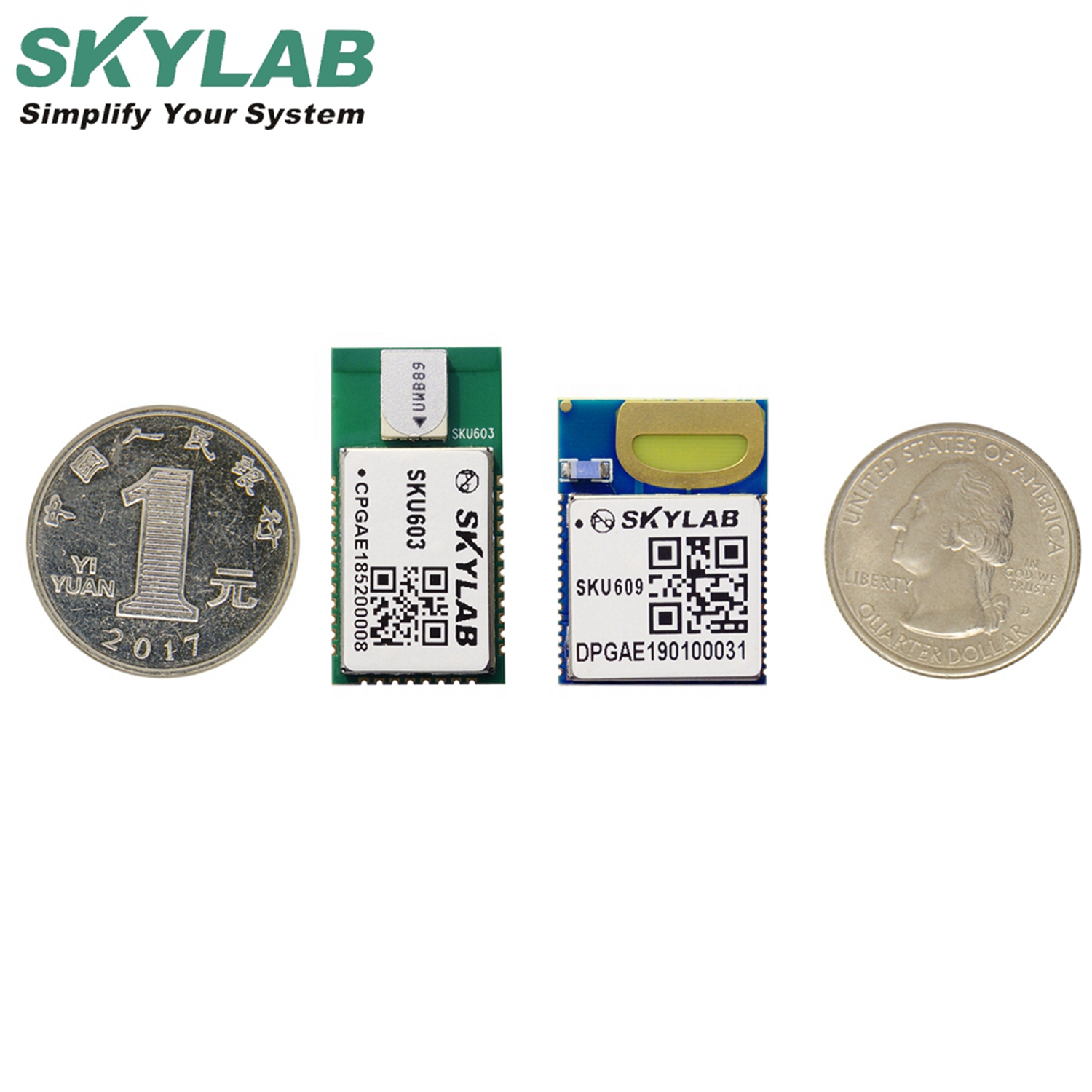

SKYLAB ARM Cortex-M3 IEEE802.15.4-2011 UART IIC 2.8-3.6V Bluetooth UWB combination module  Product Description     UWB module SKU609 is a Bluetooth UWB combination module, Bluetooth solution uses NRF52832, UWB solution uses DW1000. It can be widely used in UWB (TDOA, TWR) high-precision positioning system, and can also be applied to UWB-based precise two-way ranging. Built-in acceleration sensor can realize automatic switching of packet sending frequency under static and motion conditions, and provide various low-power mode designs in accordance with customer usage scenarios. The compact structure design can be easily embedded in the customer's products to achieve high-precision positioning of the customer's products.

Hardware Features
Module	SKU609
Voltage	2.8 V to 3.6 V.
size(L×W×H)	19.1 mm x 26.2 mm x 2.6 mm
Wireless Features
Chipest	Nordic Semiconductor nRF52832
Channel Bandwidths	500MHz Channel 1, 2, 3 and 5
In-band blocking level	30 dBc
Out-of-band blocking level	55 dBc
Others
Environment	Operating Temperature: -30℃~85℃
	Storage Temperature: -40℃~85℃
	Operating Humidity: 10%~90% Non-condensing
	Storage Humidity: 5%~90% Non-condensing

    Applications Healthcare (locate assets, patients & staff) . Industrial (asset-tracking, factory automation). Retail (security, navigation, customer analytics). Consumer (connected home, sports analytics).     Features Ranging accuracy to within 10cm. 6.8 Mbps data rate. 60 m line-of-sight range typical. IEEE 802.15.4-2011 UWB compliant. Nordic Semiconductor nRF52832. Bluetooth® connectivity. Bluetooth® chip antenna. Motion sensor: 3-axis accelerometer. Current consumption optimised for low power sleep mode:

Contact us if you need more details on Tracking System Uwb. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Uwb Social、Uwb Asset. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : UWB > UWB Ranging Module
