skylab New Arrival UWB Indoor Positioning Module rtls Close Range High Precision Ranging Module

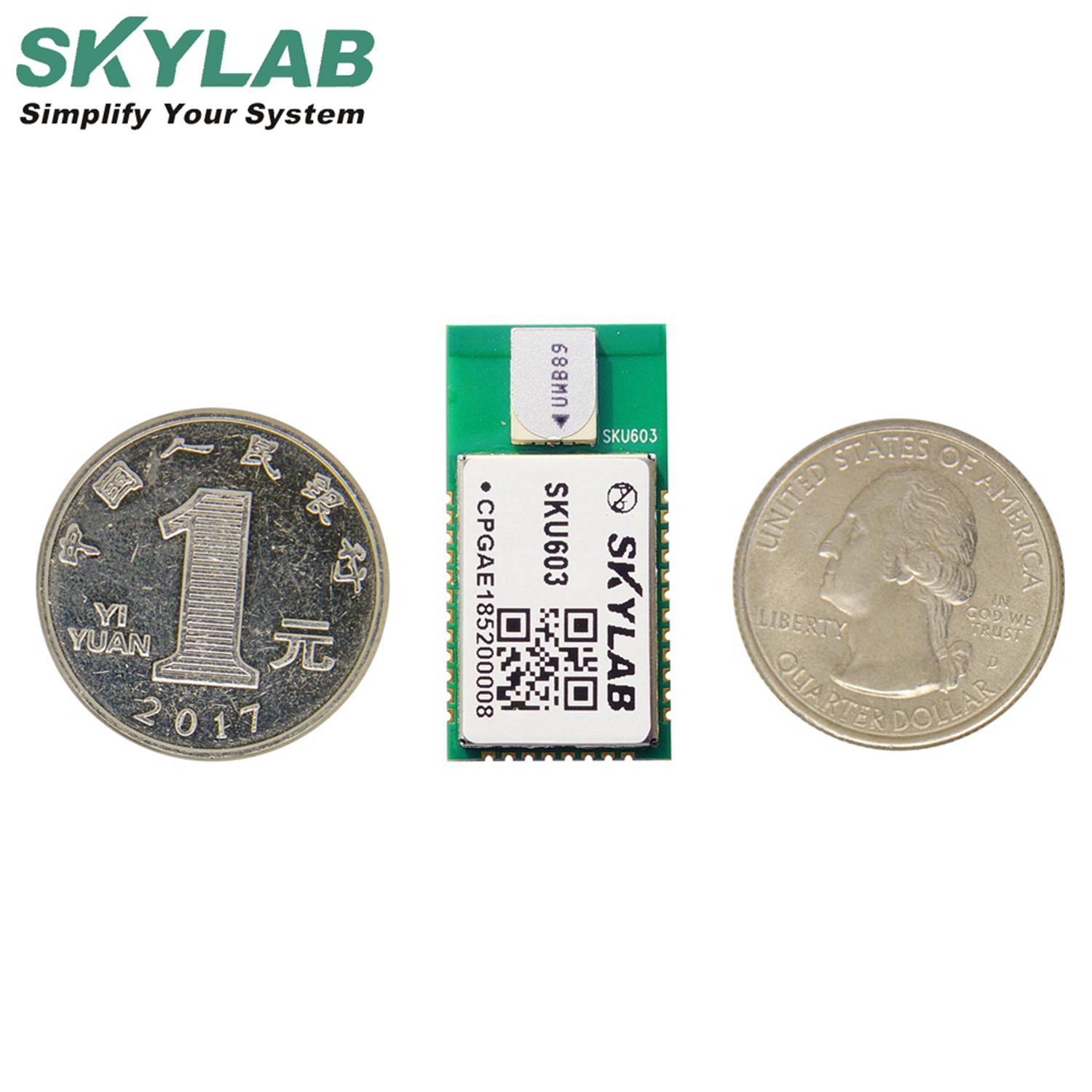

skylab New Arrival UWB Indoor Positioning Module rtls Close Range High Precision Ranging Module   Product Description  The SKU603 module is based on DecaWave's DW1000 Ultra Wideband (UWB) transceiver IC and GD32F130G8U6 MCU. It integrates antenna, all RF circuitry, power management and clock circuitry in one module. In order to save the module consumption power when the module is in static status, the module has integrated a three-axis linear accelerometer. It can be used in 2-way ranging or TDOA location systems to locate assets to a precision of 10 cm and supports data rates of up to 6.8 Mbps.

Hardware Features
Module	SKU603
Voltage	2.8V~3.6V
size(L×W×H)	28.8×15.8×3.2 mm
Wireless Features
Frequency Range	3244MHz---6999MHz
Channel Bandwidths	500MHz Channel 1, 2, 3 and 5
In-band blocking level	30 dBc
Out-of-band blocking level	55 dBc
Others
Environment	Operating Temperature: -30℃~85℃
	Storage Temperature: -40℃~85℃
	Operating Humidity: 10%~90% Non-condensing
	Storage Humidity: 5%~90% Non-condensing
