SKYLAB 6.8Mbps Data Transmission IEEE 802.15.4-2011 UWB compliant. UWB Module for Asset tracking

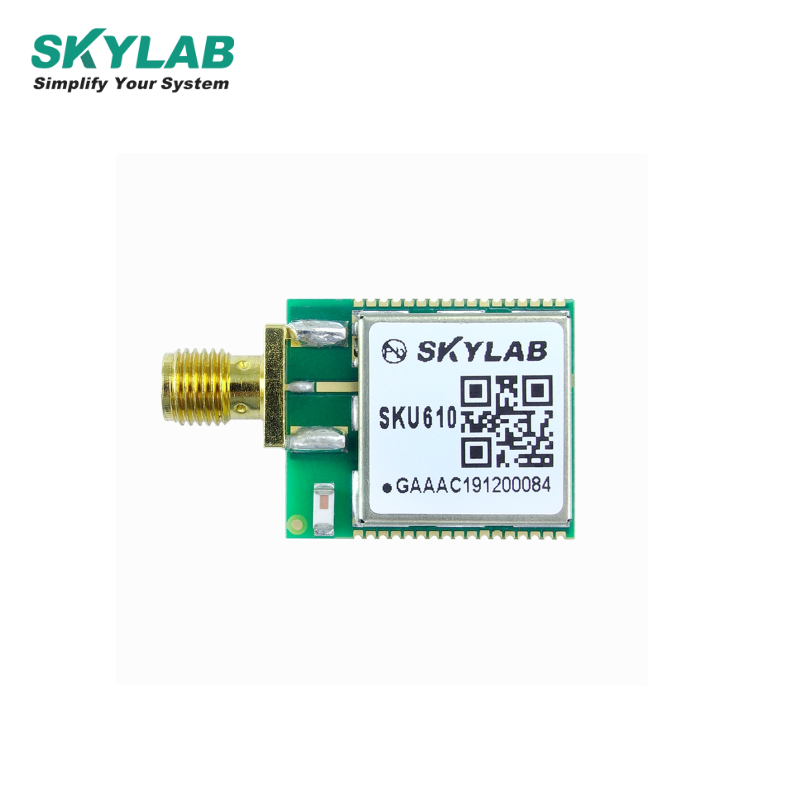

SKYLAB 6.8Mbps Data Transmission IEEE 802.15.4-2011 UWB compliant. UWB Module for Asset tracking  Product Description     The SKU610 module is based on Decawave's DW1000 Ultra Wideband (UWB) transceiver IC, which is an IEEE 802.15.4-2011 UWB implementation. It chose a external antenna connector,which can help user to match the different UWB antennas. Our module integrates all RF circuitry of NRF52832 and a 2.4G Ceramic antenna,User can use the BLE function easily.

Hardware Features
Module	SKU610
Voltage	2.8 V to 3.6 V.
size(L×W×H)	19.1 mm x 26.2 mm x 2.6 mm
Wireless Features
Chipest	Nordic Semiconductor nRF52832
Channel Bandwidths	500MHz Channel 1, 2, 3 and 5
In-band blocking level	30 dBc
Out-of-band blocking level	55 dBc
Others
Environment	Operating Temperature: -30℃~85℃
	Storage Temperature: -40℃~85℃
	Operating Humidity: 10%~90% Non-condensing
	Storage Humidity: 5%~90% Non-condensing

    Applications  Healthcare (locate assets, patients & staff) .  Industrial (asset-tracking, factory automation).  Retail (security, navigation, customer analytics).  Consumer (connected home, sports analytics).     Features Ranging accuracy to within 10cm. 6.8 Mbps data rate. 60 m line-of-sight range typical. IEEE 802.15.4-2011 UWB compliant. Nordic Semiconductor nRF52832. Bluetooth® connectivity. Bluetooth® chip antenna. Motion sensor: 3-axis accelerometer. Current consumption optimised for low power sleep mode:

Contact us if you need more details on Uwb Module For Healthcare. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Uwb Rtls、Social Distance Uwb. If these products fail to match your need, please contact us and we would like to provide relevant information.

Product Categories : UWB > UWB Ranging Module
