SKYLAB hot sale SKW92B 802.11b/g/n MT7688A Chip 3G/4G mini camera wifi module
Product Description
| Applications of wireless networking equipment | 1. IoT (internet of things) 2. 3G/4G WiFi Router 3. USB WiFi Camera 4. Building Automation 5. Home Automation 6. Smart Home Gateway 7. Smart Lighting 8. Smart Plug 9. Industry Control |
| Feature | 1. Compliant to IEEE 802.11b/g/n. 2. 1T1R 2.4GHz with support for a 150Mbps PHY data rate. 3. DDR2 memory up to 1024Mb. 4. Flash memory up to 526Mb. 5. 4 LAN ports and 1 WAN port. 6. Support USB 2.0 slave device for USB disk and USB 3G/4G dongle and USB camera. 7. 24 STA-Proxy. 8. Support interface: SD-XC, I2C, PCM, I2S(192K/24bits), PWM, SPI slave, UART lite, GPIO. 9. Security: WEP64/128, TKIP, AES, WPA, WPA2, WAPI. 10. Support IoT gateway mode and IoT device mode . 11. RoHS compliance meets environment-friendly requirement. 12. Conform to FCC/CE/IC/RoHS certification standards. 13. 40.5mm(L) x 25mm(W) x 3.0mm(H) dimension. |
| Hardware Features | |
| Model | SKW92B |
| Antenna Type | IPEX |
| Chipset solution | MT7688A |
| Voltage | 3.3V±5% |
| Dimension(L×W×H) | 40.5mm*25.0mm*3.0mm |
| Wireless Features | |
| Wireless Standards | IEEE 802.11b/g/n |
| Frequency Range | 2412GHz---24884MHz |
| Data Rates | IEEE 802.11b: 1,2,5.5,11Mbps |
| IEEE 802.11g: 6,9,12,18,24,36,48,54Mbps | |
| IEEE 802.11n: MCS0--MCS7 @ HT20 | |
| MCS0--MCS7 @ HT40 | |
| Receiver Sensitivity | HT40 MCS7: -70dBm@10% PER(MCS7) |
| HT20 MCS7: -73dBm@10% PER(MCS7) | |
| 54M: -77dBm@10% PER | |
| 11M: -89dBm@ 8% PER | |
| Modulation Technique | DSSS (DBPSK, DQPSK, CCK) |
| OFDM (BPSK, QPSK, 16-QAM, 64-QAM) | |
| Wireless Security | WPA/WPA2, WEP, TKIP and AES, WPS2.0, WAPI |
| Transmit Power | IEEE 802.11n: 16dBm @HT20/40 MCS7 |
| IEEE 802.11g: 16dBm @54MHz | |
| IEEE 802.11b: 18dBm @11MHz | |
| Work Mode | IOT Gateway/IOT Device |
| Others | |
| Certification | RoHS |
| Environment | Operating Temperature: -20℃~55℃ |
| Storage Temperature: -40℃~125℃ | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
More Customer Choice

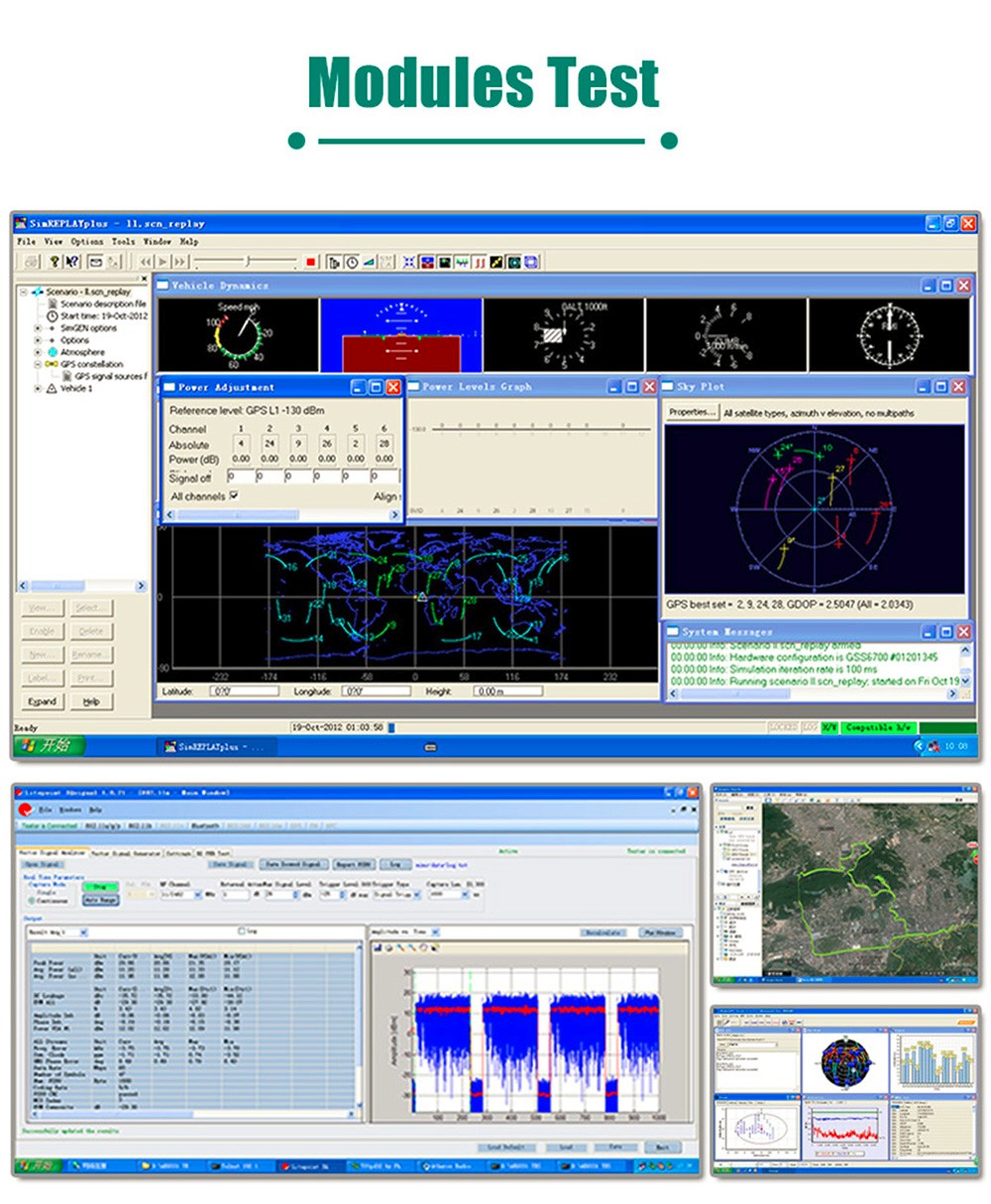

Test & Certificates
