SKYLAB RoHS CE FCC certificate MT7601 4G WLAN MAC/BB Embedded SMD Linux Ralink USB WiFi Direct Module  Product Description     WG209 is a 802.11n/ b/g WiFi one-stream USB interface designed specifically to provide enhanced WiFi performance and value for home Gateways, set-top boxes, gaming consoles, printers, IP cameras, and variety of other products that host processors not originally intended to support WiFi functions. WG209's MT7601 single-chip features a new architecture that integrates both a CPU and memory to run more of the WiFi function on-chip. The integrated CPU offloads the wireless processing overhead from the host appliance and enables consumer electronic devices to support WiFi functions seamlessly without change of original host processors.

Model	WG209
Antenna Type	IPEX connector  or PCB Antenna
Standard Conformance	802.11b, 802.11g, and 802.11n
Frequency Range	USA: 2.400 ~ 2.483GHz
	Europe: 2.400 ~ 2.483GHz
	Japan: 2.400 ~ 2.497GHz
	China: 2.400 ~ 2.483GHz
Modulation Technique	DSSS with CCK, DQPSK, DBPSK
	OFDM with BPSK, QPSK, 16QAM, 64QAM
Channel Spacing	5MHz/20MHz/40MHz
Data Rate	802.11b: 1, 2, 5.5 and 11Mbps
	802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
	802.11n: 20MHz channel: 1Nss: 65Mbps @ 800GI, 72.2Mbps @ 400GI (Max.)
	40MHz channel: 1Nss: 135Mbps @ 800GI, 150Mbps @ 400GI (Max.)
Operating Channels	USA/Canada: 11 (1~11)
	Major Europe Countries: 13 (1~13)
	France: 4 (10~13)
	Japan: 14 for 802.11b (1~13 or 14th), 13 for 802.11g (1~13)
	China: 13 (1~13)
Wi-Fi Compliance	Wi-Fi 2.4GHz by request
Security	64/128/152-bit WEP encryption
	WPA/WPA2 encryption
	AES-CCM & TKIP encryption

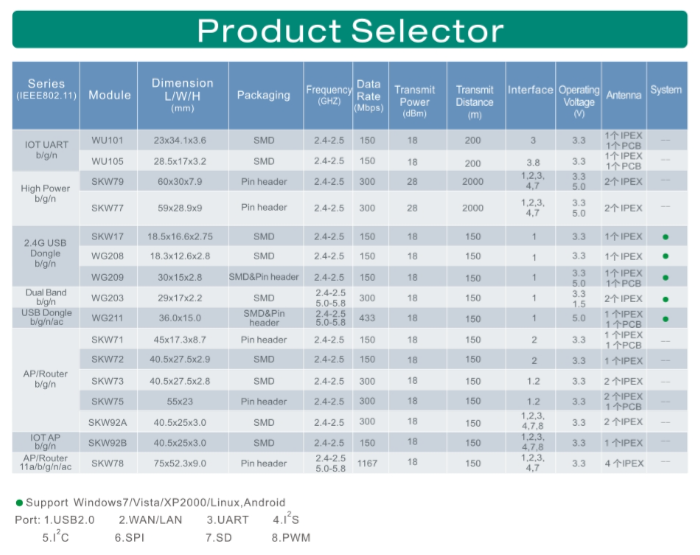

Features 1.Compliant to IEEE 802.11b/g/n WLANs 2.2.4 GHz WLAN MAC/BB processing 3.Security: WEP 64/128, WPA, WPA2, TKIP, AES, WAPI 4.Supports for Windows XP 32/64, 2000, Vista 32/64bit, Windows 7 32/64bit, Linux, Android. 5.Power Supply: 3.3V or 5.0V 6.Package: SMD or 4pin/6pin Connector   7.USB 2.0 high speed interface. 8.Supports 72.2 Mbps for 20 MHz and 150 Mbps for 40 MHz channel operations. 9.Certificate: FCC,CE .   10.RoHS compliance meets environment-friendly requirement. 11.30(L) x 15(W) x 2.8(H) mm small dimension    Applications  1.Desktop Computer 2.Laptop Computer 3.IP Camera  4.IP TV  5.IP DVD(Internet VOD Player)  6.Set Top Box  7.Home Gateways  8.Gaming Consoles  9.Printers   Applications Block Diagram More Customer Choice   Company Information    SKYLAB M&C Technology Co.,Ltd, located in Shenzhen, China. specialized in WiFi, Bluetooth,GNSS and other wireless products research and development. Own a professional team which have rich experiences of GNSS/WiFi/Bluetooth/UWB/NB-IoT/GPRS hardware&software development and RF tech. Aiming to supply high-quality, high-performance wireless modules and relevant application solutions to domestic and overseas customers who need OEM/ODM and system integrators.Committed to create long-term market value and potential increase for customers. Test & Certificates
