Home > Products > WIFI Modules > 2020 best selling RTL8811 IP Camera WiFi RealTek USB 5GHz WiFi Module

2020 best selling RTL8811 IP Camera WiFi RealTek USB 5GHz WiFi Module

Product Description

Product Description

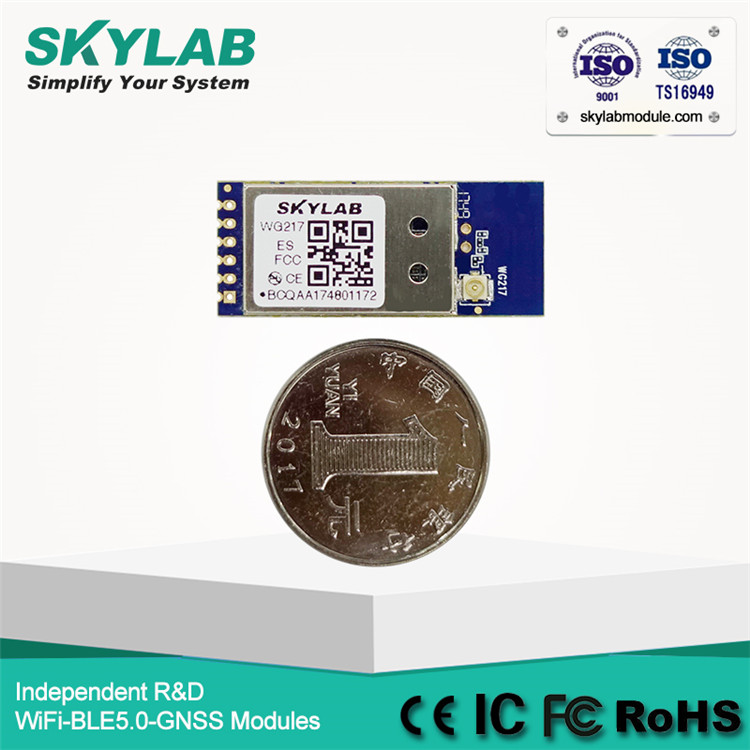

RTL8811 Camera WiFi RealTek USB 5GHz WiFi Module

Hardware Features

Model

WG217

Antenna Type

IPEX connecter or PCB antenna

Chipset solution

RTL8811

Voltage

3.3V+/-10%

Dimension

36.0(L) x 15.0(W) x 3.2(H)mm

Wireless Features

Wireless Standards

IEEE 802.11 a/b/g/n/ac

Frequency Range

2.4/5GHz

Data Rates

IEEE 802.11a Standard Mode: 6,9,12,18,24,36,48,54Mbp

IEEE 802.11 b Standard Mode: 1,2,5.5,11Mbps

IEEE 802.11g Standard Mode: 6,9,12,18,24,36,48,54Mbps



IEEE 802.11n/Draft 2.0 Mode: 130Mbps @ HT20

150Mbps @ HT40

IEEE 802.11ac Standard Mode: 433Mbps @VHT80

2.4GReceiver Sensitivity

HT40 MCS7 :   -72dBm@10% PER(MCS7)

HT20 MCS7 :   -75dBm@10% PER(MCS7)

       54M:   -77dBm@10% PER

11M:   -90dBm@10% PER

5GReceiver Sensitivity

VHT80 MCS15: -62dBm@10% PER(MCS9)

VHT40 MCS15: -75dBm@10% PER(MCS9)

OFDM 54M:   -75dBm@10% PER

OFDM  6M:   -90dBm@8% PER

Modulation Technique

802.11 Legacy b/g/n

DSSS (DBPSK, DQPSK, CCK)

OFDM (BPSK, QPSK, 16-QAM, 64-QAM)

802.11ac

OFDM (256-QAM)

Wireless Security

WPA/WPA2, WEP, TKIP, and AES hardware encryption

5GHz Transmit Power

IEEE 802.11ac: 11-14dBm @AC80 MCS7

2.4GHz Transmit Power

IEEE 802.11n:  13-16dBm @HT40 MCS7

13-16dBm@HT20 MCS7

IEEE 802.11g:     15-17dBm

IEEE 802.11b:     16-18dBm

Work Mode

AP/Ad-Hoc / Infrastructure mode

Others

Certification

RoHS

Power Consumption@25°C

Status

Power

2.4G/mA

5G/mA

TransmissionHT40/ MCS 15

5.0V

150

160

Receiving HT40/ MCS 15

5.0V

90

90

SYSTEM REQUIREMENTS

Windows 7(32/64bits), Windows Vista(32/64bits), Windows XP(32/64bits), Windows 2000,Linux,Android

  2020 best selling RTL8811 IP Camera WiFi RealTek USB 5GHz WiFi Module   WG217 is a highly integrated USB Wi-Fi module which supports 433Mbps PHY rate. It is compliant with IEEE 802.11ac draft specification, offering feature-rich wireless connectivity and reliable throughput from an extended distance.   WG217 is designed to support standard based features in the areas of security, quality of service and international regulations, giving end users the greatest performance any time and in any circumstance.

RTL8811 Camera WiFi RealTek USB 5GHz WiFi Module

Features

1. IEEE 802.11a/b/g/n/ac WLANs

2. 2.4G /5G ITIR mode

3. With support of 433Mbps PHY rate

4. IEEE 802.11e QoS Enhancement(WLAN)

5. USB LPM/Selective Suspend support

6. Fully compliance with USB2.0 High-speed mode.

7. IEEE 802.11i(WPA, WPA2). Open, shared key, and pair-wise key authentication services

8. Supports for Windows XP 32/64, 2000, Vista 32/64bit, Windows 7 32/64bit, Linux, Android

9. RoHS compliance meets Environment-friendly requirement.

10. FCC,CE compliance

11. 36.0(L) x 15.0(W) x 3.2mm small dimension

Applications

IP Camera

IP TV

IP DVD(Internet VOD Player)

Set Top Box

Home Gateways

Gaming Consoles

DVR

    2020 best selling RTL8811 IP Camera WiFi RealTek USB 5GHz WiFi Module2020 best selling RTL8811 IP Camera WiFi RealTek USB 5GHz WiFi Module2020 best selling RTL8811 IP Camera WiFi RealTek USB 5GHz WiFi Module   Hot sale product Company Information 2020 best selling RTL8811 IP Camera WiFi RealTek USB 5GHz WiFi ModuleSKYLAB M&C Technology Co.,Ltd, located in Shenzhen, China. specialized in WiFi, Bluetooth,GNSS and other wireless products research and development. Own a professional team which have rich experiences of GNSS/WiFi/Bluetooth/UWB/NB-IoT/GPRS hardware&software development and RF tech. Aiming to supply high-quality, high-performance wireless modules and relevant application solutions to domestic and overseas customers who need OEM/ODM and system integrators.Committed to create long-term market value and potential increase for customers. Test & Certificate  2020 best selling RTL8811 IP Camera WiFi RealTek USB 5GHz WiFi Module   SKYLAB Advantage  2020 best selling RTL8811 IP Camera WiFi RealTek USB 5GHz WiFi Module Project & Developmen  2020 best selling RTL8811 IP Camera WiFi RealTek USB 5GHz WiFi Module   SKYLAB Team  2020 best selling RTL8811 IP Camera WiFi RealTek USB 5GHz WiFi Module Contact Us 2020 best selling RTL8811 IP Camera WiFi RealTek USB 5GHz WiFi Module
