SKYLAB Express-if PCB Antenna 2UART/SDIO/SPI/ADC/PWM ESP32 Audio Spi A2Dp Spp Hid Wifi Bluetooth Module for Home automation

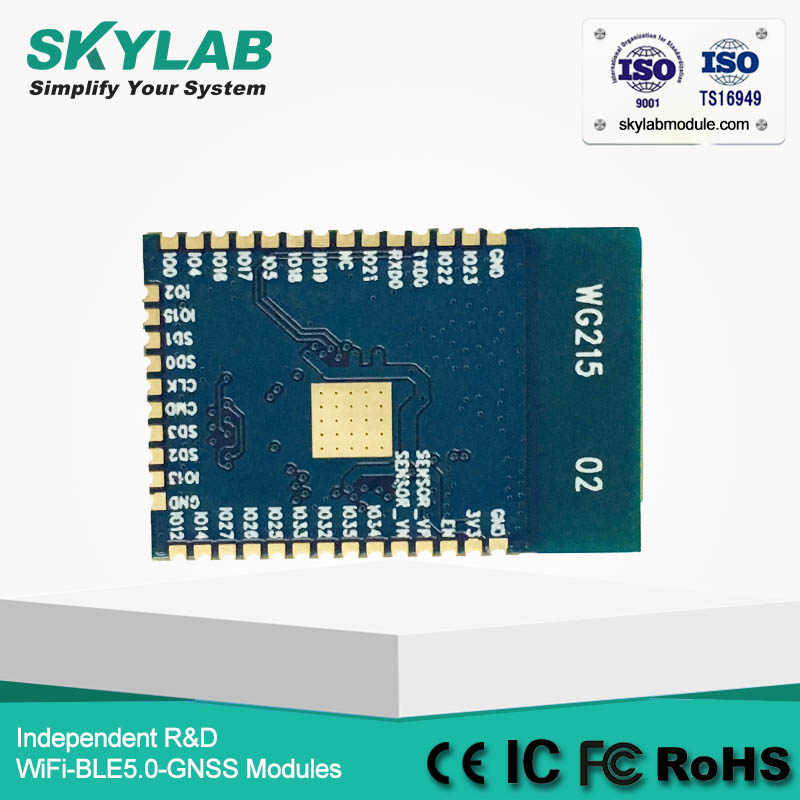

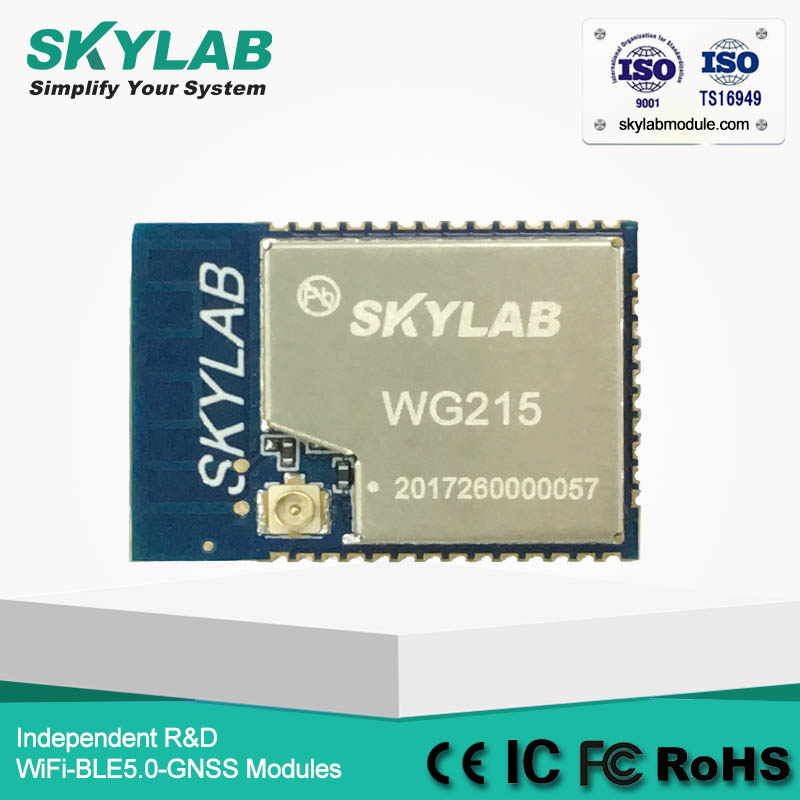

SKYLAB Express-if PCB Antenna 2UART/SDIO/SPI/ADC/PWM ESP32 Audio Spi A2Dp Spp Hid Wifi Bluetooth Module for Home automation  Product Description WG215 is a single 2.4 GHz Wi-Fi and Bluetooth combination solution to support 1 x 1 802.11 b/g/n WLAN standards and Bluetooth v4.2 BR/EDR and BLE, enabling seamless integration of WLAN/BT and low-energy technology. The module requiring only an external 3.3V power supply. All features are enhanced by a built-in antenna and an interface port to the carrier board. This interface port includes power supply pins, SDIO, ADC, GPIO ports and UART ports.

Hardware Features
Module	WG215
ANTENNA TYPE	PCB Antenna
Voltage	3.3V+/-10%
DIMENTIONS(L×W×H)	25.5mm*18.0mm*3.2mm
2.4GHz WiFi Features
WIRELESS STANDARDS	IEEE 802.11 b/g/n/
FREQUENCY RANGE	2.412-2.484GHz
DATA RATES	IEEE 802.11a Standard Mode: 6,9,12,18,24,36,48,54Mbps
	IEEE 802.11 b Standard Mode: 1,2,5.5,11Mbps
	IEEE 802.11g Standard Mode: 6,9,12,18,24,36,48,54Mbps
	IEEE 802.11n Standard Mode: 150Mbps @ HT20
2.4G RECEIVE SENSITIVITY	HT40 MCS7: -69dBm@10% PER(MCS7)
	HT20 MCS7 : -70dBm@10% PER(MCS7)
	OFDM 54M: -74dBm@10% PER
	CCK, 11M: -88dBm@ 8% PER
WIRELESS SECURITY	Supports WEP64/128, WPA, WPA2, TKIP, WAPI, and AES hardware encryption
WIRELESS TRANSMIT POWER With ±2dBm tolerance	IEEE 802.11n: 12-14dBm @HT40 MCS7 12-14dBm@HT20 MCS7 IEEE 802.11g: 16dBm IEEE 802.11b: 18dBm

Features
Wi-Fi
802.11 b/g/n/e/i
802.11 n (2.4 GHz), up to 150 Mbps
802.11 e: QoS for wireless multimedia technology
PMM-PS,UAPSD
A-MPDU and A-MSDU aggregation
Block ACK
Fragmentation and defragmentation
Automatic Beacon monitoring/scanning
802.11 i security features: pre-authentication and TSN
Wi-Fi Protected Access (WPA)/WPA2/WPA2-Enterprise/Wi-Fi Protected Setup (WPS)
Infrastructure BSS Station mode/Soft AP mode
Wi-Fi Direct (P2P), P2P Discovery, P2P Group Owner mode and P2P Power Management
UMA compliant and certified
Antenna diversity and selection   Bluetooth Adaptive Frequency Hopping(AFH) Standard HCI based on SDIO/SPI/UART High-speed UART HCI, up to 4 Mbps BT 4.2 controller and host stack Service Discover Protocol (SDP) General Access Profile (GAP) Security Manage Protocol (SMP) Bluetooth Low Energy (BLE)
CompliantwithBluetoothv4.2BR/EDR and BLE specification
Class-1,class-2andclass-3transmitterwithoutexternalpoweramplifier
Enhanced power control
+10 dBm transmitting power
Bluetooth Low Energy (BLE)
ATT/GATT
HID
All GATT-based profile supported
SPP-Like GATT-based profile
BLE Beacon
A2DP/AVRCP/SPP, HSP/HFP, RFCOMM
CVSD and SBC for audio codec
Bluetooth Piconet and Scatternet
RoHS compliance (Lead-free)
FCC,CE compliance   Hot sale product Company Information SKYLAB M&C Technology Co.,Ltd, located in Shenzhen, China. specialized in WiFi, Bluetooth,GNSS and other wireless products research and development. Own a professional team which have rich experiences of GNSS/WiFi/Bluetooth/UWB/NB-IoT/GPRS hardware&software development and RF tech. Aiming to supply high-quality, high-performance wireless modules and relevant application solutions to domestic and overseas customers who need OEM/ODM and system integrators.Committed to create long-term market value and potential increase for customers. Test & Certificates
