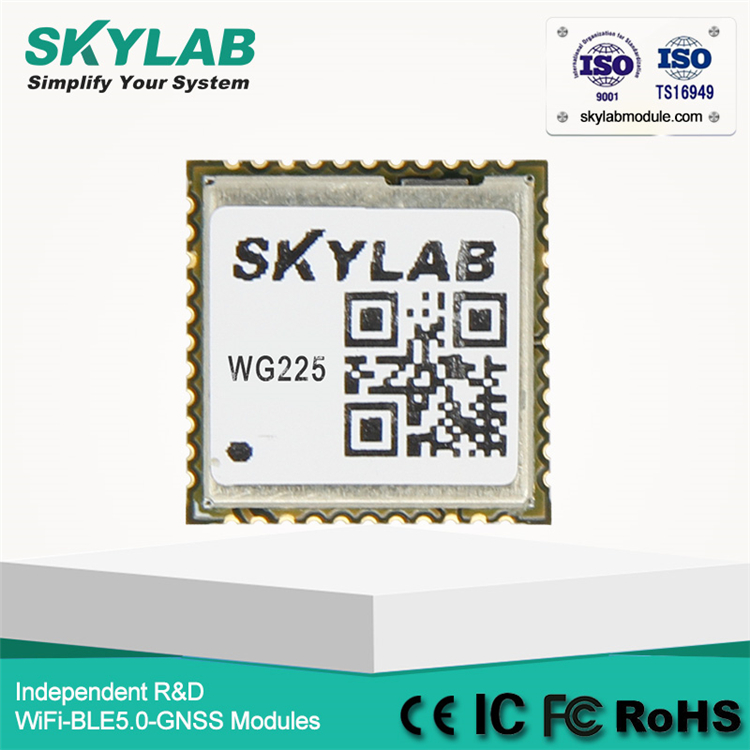

SKYLAB RoHS SDIO 433mbps rtl8821 usb 2.4ghz iot uart realtek wifi module for headsets

Product Description

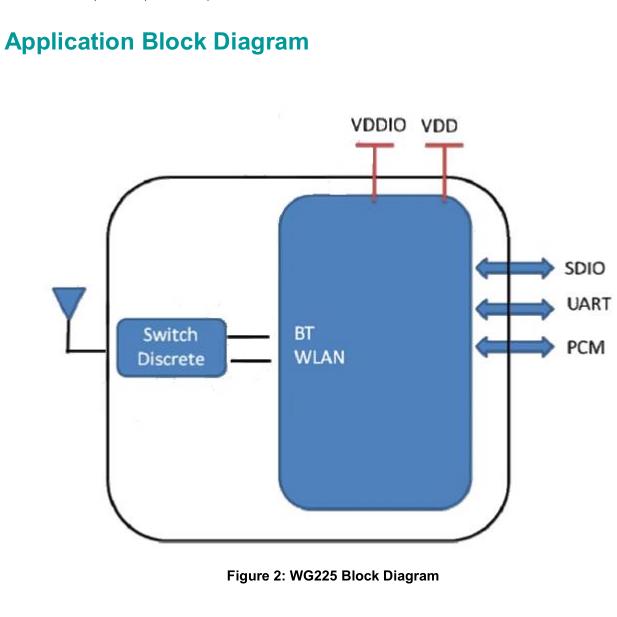

SKYLAB RoHS SDIO 433mbps rtl8821 usb 2.4ghz iot uart realtek wifi module for headsets Product Description     The WG225 module is WLAN and T combination solution to support 1 x 1 802.11 a/b/g/n/ac WLAN standards and BT 4.2 + HS,  enabling seamless integration of WLAN/BT and low-energy technology. The module requires only an external 3.3V power supply.The module is based on the single chip RTL8821. It supports a low-power SDIO 3.0 interface for WLAN and a UART/PCM interface for BT.
SKYLAB RoHS SDIO 433mbps rtl8821 usb 2.4ghz iot uart realtek wifi module for headsets

Features

Wi-Fi
802.11 a/b/g/n/ac, up to 433.3 Mbps data rate.
1T1R WLAN for 5 GHz 802.11ac, or 2.4 GHz/5 GHz 802.11n WLAN applications.
SDIO 3.0 interface for WLAN
Bt
Compliant with BT v2.1 + EDR
Support BT 4.2 features
Class-1, class-2 and class-3 transmitter without external power amplifier
Enhanced power control
Integrated internal Class 1,Class 2,and Class 3 PAs
Support BT-WLAN coexistence
RoHS compliance (Lead-free)

SKYLAB RoHS SDIO 433mbps rtl8821 usb 2.4ghz iot uart realtek wifi module for headsets

Hardware Features

WG225

PCB Pin

RTL8821

3.3V±5%

12.0mm*12.0mm*1.8mm

Data Rates

IEEE 802.11b : 1,2,5.5,11Mbps

IEEE 802.11g : 6,9,12,18,24,36,48,54Mbps

IEEE 802.11n :  MCS0--MCS7 @ HT20  /2.4GHz band

MCS0--MCS7  @ HT40   /2.4GHz band

MCS0--MCS9  @ HT40   /5GHz band

IEEE 802.11ac :  MCS0--MCS9  @ VHT80   /5GHz band

Receiver Sensitivity

VHT80 MCS9 :  -53dBm@10% PER(MCS9) /5GHz band

HT40 MCS9 :   -60dBm@10% PER(MCS9) /5GHz band

HT40 MCS7 :   -65dBm@10% PER(MCS7) /2.4GHz band

HT20 MCS7 :   -66dBm@10% PER(MCS7) /2.4GHz band

54M:   -71dBm@10% PER

11M:   -83dBm@ 8% PER

Modulation Technique

DSSS (DBPSK, DQPSK, CCK)

OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 125-QAM, 256-QAM)

Wireless Security

WPA/WPA2, WEP, TKIP and AES, WPS2.0, WAPI

Transmit Power

IEEE 802.11ac:     11dBm @HT80 MCS9 /5GHz band

IEEE 802.11ac:     13dBm @HT80 MCS0 /5GHz band

IEEE 802.11n:      12dBm @HT20/40 MCS7 /5GHz band

IEEE 802.11n:      14dBm @HT20/40 MCS0 /5GHz band

IEEE 802.11n:      14dBm @HT20/40 MCS7 /2.4GHz band

IEEE 802.11g:      16dBm @54MHz

IEEE 802.11b:      18dBm @11MHz

Others

Certification

RoHS

Environment

Operating Temperature: -20~70

Storage Temperature: -40~135

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
