Home > Products > WIFI Modules > IEEE 802.11n wifi wireless module USB/WAN/UART Embedded WiFi Router Module AR9331

IEEE 802.11n wifi wireless module USB/WAN/UART Embedded WiFi Router Module AR9331

Product Description

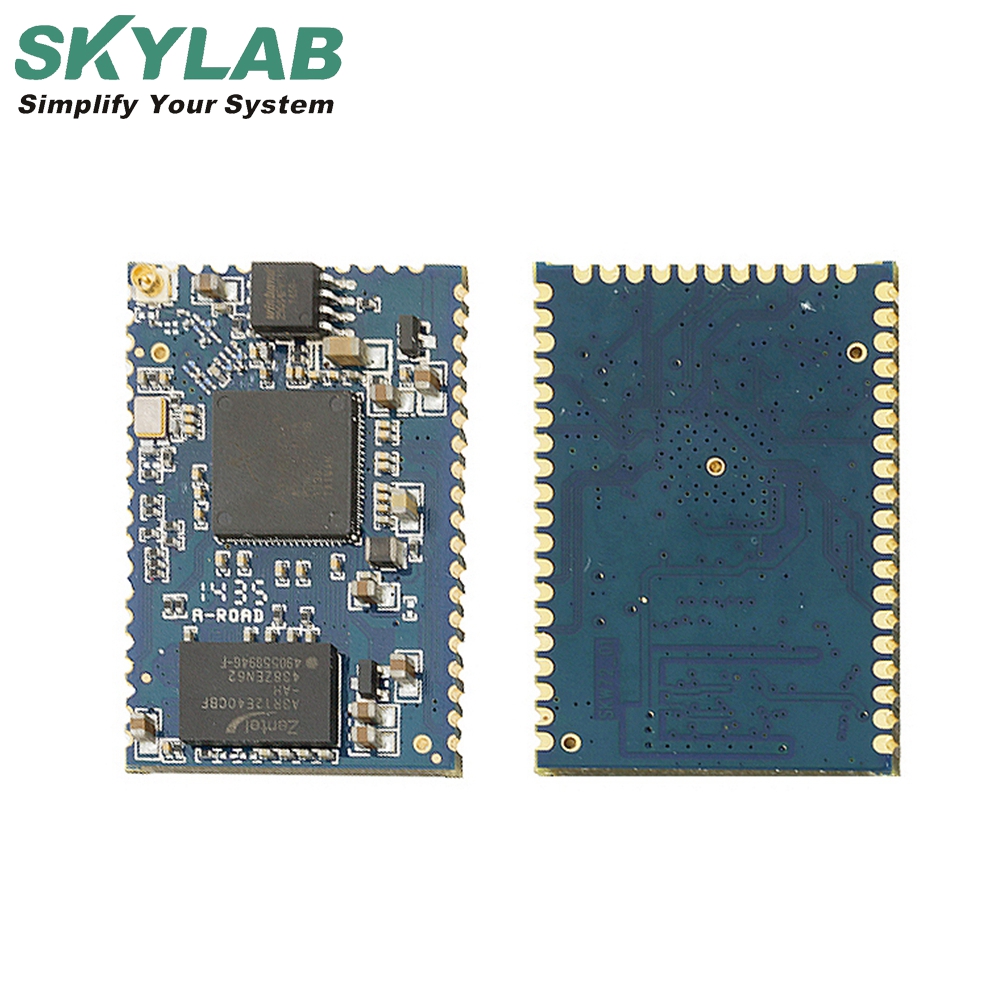

SKYLAB USB/WAN/UART Embedded WiFi Router Module AR9331Product DescriptionIEEE 802.11n wifi wireless module USB/WAN/UART Embedded WiFi Router Module AR9331The module SKW72 compliant to 802.11 b/g/n Wi-Fi Solution for low power, low-cost, and highly integrated AP and consumer electronic devices, the module requiring only a external 3.3V power supply and connection to antenna.The module based on the single chip AR9331 which integrates an 802.11n 1x1 MAC/BB/radio with internal PA and LNA. It supports 802.11n operations up to 72 Mbps for 20 MHz and 150 Mbps for 40 MHz channel respectively, and IEEE 802.11b/g data rates.The module support AP mode and client mode and repeater mode and UART wifi.FeaturesCompliant to IEEE 802.11b/g/n 1x1WLANsDDR2 memory up to 512MbFlash memory up to 64Mb4LAN ports and 1 WAN portHigh-speed UARTUSB 2.0 host device mode supportSupport AP/Client/Repeater modeSupport UART to wifi transparentSecurity: WEP 64/128, WPA, WPA2, TKIP, AES, WAPIRoHS compliance meets environment-friendly requirement.40.5(L) x 27.5(W) x 2.9(H) mm small dimension

Hardware Features

Model

SKW72

Antenna Type

     IPEX connector  or PCB pin

Chipset solution

AR9331

Voltage

3.3.0V+/-10%

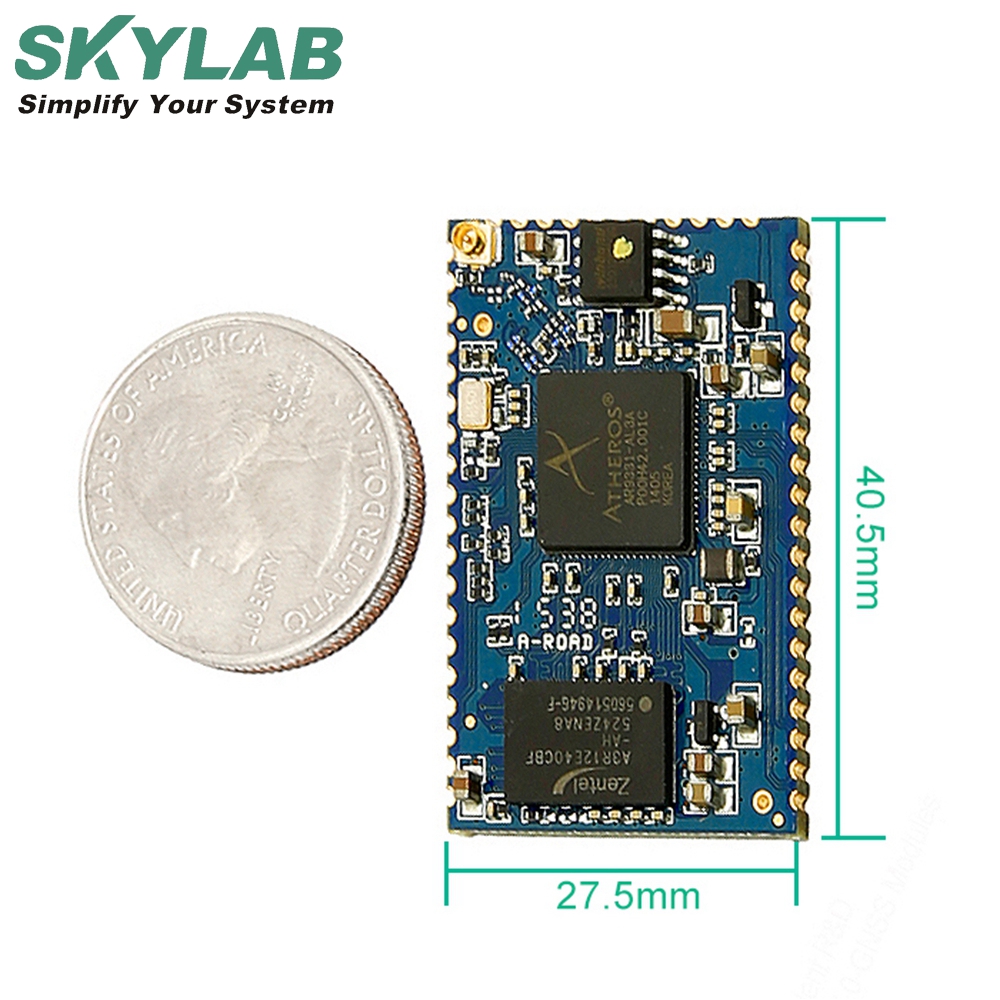

Dimentions(W×D)

40.5mm*27.5mm

Wireless Features

Wireless Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b

Frequency Range

2.400GHz---2.4835GHz

Data Rates

 IEEE 802.11 b Standard Mode: 1,2,5.5,11Mbps

 IEEE 802.11g Standard Mode: 6,9,12,18,24,36,48,54Mbps

 IEEE 802.11n :  65Mbps @ HT20

               150Mbps @ HT40

Receiver Sensitivity

 135M:    -65dBm@10% PER(MCS7)

 72.2M:    -70dBm@10% PER(MCS7)

  54M:    -75dBm@10% PER

  11M:    -86dBm@ 8% PER

Modulation Technique

802.11 Legacy b/g

DSSS (DBPSK, DQPSK, CCK)

OFDM (BPSK, QPSK, 16-QAM, 64-QAM)

Wireless Security

WPA/WPA2, WEP, TKIP, and AES

Transmit Power

IEEE 802.11n:      14dBm @HT40 MCS7

12dBm@HT20 MCS7

IEEE 802.11g:      15dBm

IEEE 802.11b:      18dBm

Work Mode

Ad-Hoc / Infrastructure mode/AP/Repeater/UART

IEEE 802.11n wifi wireless module USB/WAN/UART Embedded WiFi Router Module AR9331IEEE 802.11n wifi wireless module USB/WAN/UART Embedded WiFi Router Module AR9331IEEE 802.11n wifi wireless module USB/WAN/UART Embedded WiFi Router Module AR9331More Customer Choice Test & CertificatesIEEE 802.11n wifi wireless module USB/WAN/UART Embedded WiFi Router Module AR9331
