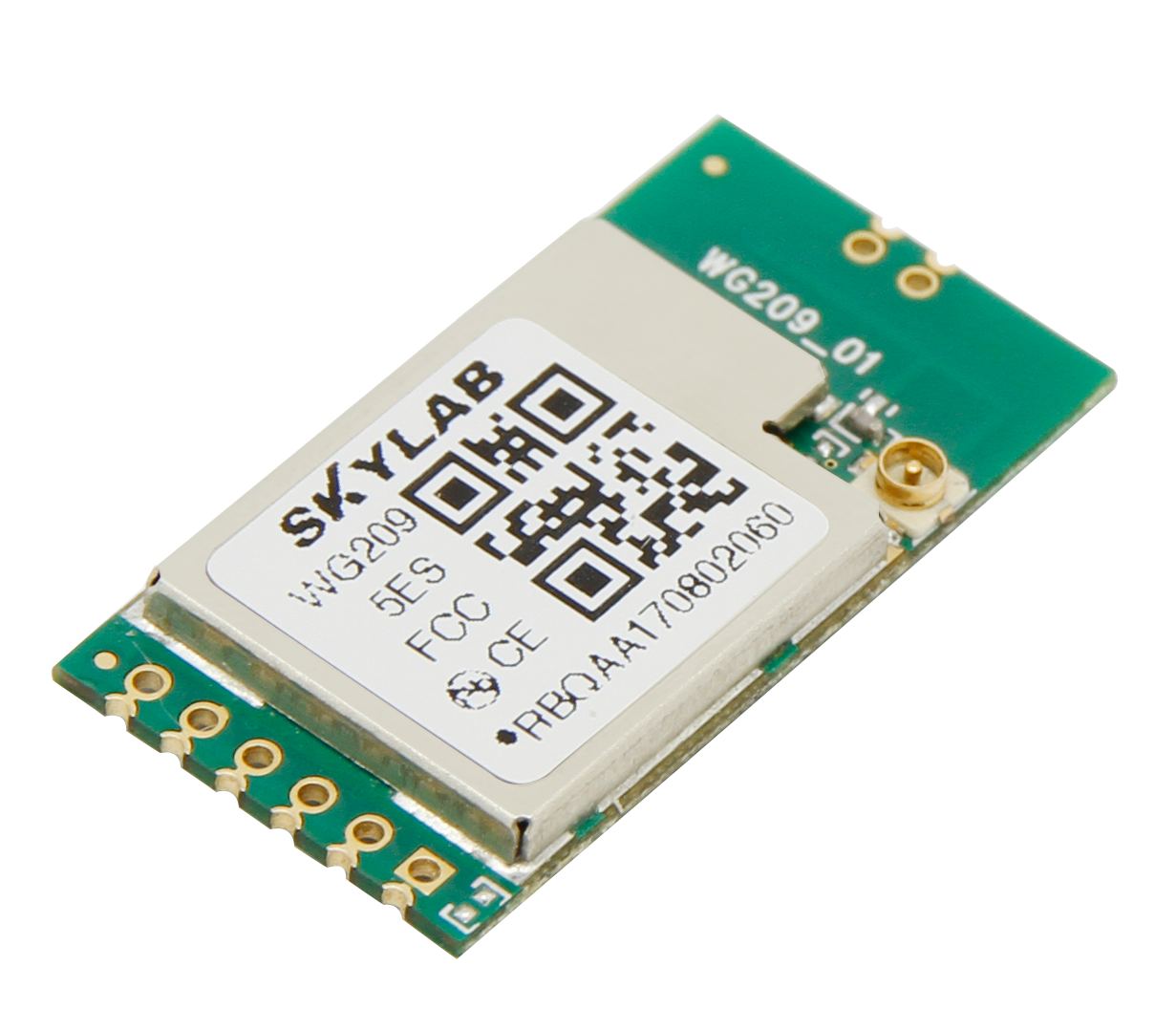

SKYLAB 802.11n/ b/g IP Camera/set top box USB WiFi wireless MT7601 Direct wireless WiFi Module
Product Description
All from 20% offLimited Time Offers0223:44:32See all productsUS $3.10US $3.88MOQ:10 Piece/Pieces20% offUS $5.29US $5.88MOQ:1 Piece/Pieces10% off Product Description WG209 is a 802.11n/ b/g WiFi one-stream USB interface designed specifically to provide enhanced WiFi performance and value for home Gateways, set-top boxes, gaming consoles, printers, IP cameras, and variety of other products that host processors not originally intended to support WiFi functions. WG209's MT7601 single-chip features a new architecture that integrates both a CPU and memory to run more of the WiFi function on-chip. The integrated CPU offloads the wireless processing overhead from the host appliance and enables consumer electronic devices to support WiFi functions seamlessly without change of original host processors. Applications Desktop Computer Laptop Computer, IP Camera IP TV IP DVD(Internet VOD Player) Set Top Box Home Gateways Gaming Consoles Printer Features Compliant to IEEE 802.11b/g/n WLANs 2.4 GHz WLAN MAC/BB processing Security: WEP 64/128, WPA, WPA2, TKIP, AES, WAPI Supports for Windows XP 32/64, 2000, Vista 32/64bit, Windows 7 32/64bit, Support Linux up to V3.10, and support for Android..
Power Supply: 3.3V or 5.0V Package: SMD or 4pin/6pin Connector USB 2.0 high speed interface. Supports 72.2 Mbps for 20 MHz and 150 Mbps for 40 MHz channel operations. FCC,CE,IC certificated RoHS certificated meets environment-friendly requirement. 30±0.3(L) x 15±0.3 (W) x 2.4±0.2(H) mm small dimension(WG209-5PS、WG209-5ES、WG209-3PS、 WG209-3ES 30±0.3(L) x 15±0.3 (W) x8.8±0.2(H) mm small dimension(WG209-5P6、WG209-5P4、WG209-5E6、 WG209-5E4、WG209-3P6、WG209-3P4、WG209-3E6、WG209-3E4)
Applications Block Diagram Specification
Hot Sales Product view more >>Best SellingSKYLAB High Quality AP serial port USB 2.0 Portable Router 802.11b/g/h 150Mbps Low Cost wireless ar9331 openWRT wifi Module$6.26 - $6.88 / Piece5 PiecesSKYLAB low cost 867Mbps realtek rtl8812au usb wifi adapter 2.4/5GHz ac Dual-band wifi module$5.86 - $6.19 / Piece10 PiecesSKYLAB low power AP/client/router 802.11 b/g/n wireless WIFI Gateway MTK AP WIFI module for USB WiFi Camera$5.68 - $6.62 / Piece5.0 PiecesSKYLAB Oem Mt7628N Wireless Wifi 4G Lte Router Gpio Openwrt 2X2 Mimo Access Point Mtk Usb Wlan WIFI Module$4.00 - $6.86 / Unit5 UnitsSKYLAB RoHS low cost SKW92A 2.4GHz wireless SPI mini Camera AP wifi Module$2.00 - $5.88 / Piece10 Pieceshc05 audio receiver amplifiers board wireless bluetooth module$4.26 - $5.62 / Unit5 Units Company Profile SKYLAB M&C Technology Co.,Ltd, specialized in GNSS,WiFi, Bluetooth ,UWB,NB-IoT and other wireless products research and development. Aiming to supply high-quality, high-performance wireless modules and relevant application solutions to domestic and foreign customers who need OEM/ODM and system integrators.Committed to create long-term market value and potential increase for customers. Since 2002, SKYLAB has replied on developing experiences of wireless communication field, build a powerful team that own rich experiences of GNSS/WiFi/Bluetooth/GPRS hardware&software development and RF technology. SKYLAB offer high-quality GPS,Beidou,GLONASS, GALILEO and other GNSS navigation and positioning modules, WIFI Modules, bluetooth modules, including indoor positioning solutions. Secondary development of applications based on module core will cut down customer`s overall cost and offer low-cost wireless devices` solutions. SKYLAB passed ISO-9001 Quality-Control system and TS-16949 automotive industry quality standard system, Germany TUV Nand certification Involved.
our certifcates development process FAQ 1. who are we?
We are based in Guangdong, China, start from 2006,sell to North America(00.00%),Eastern Europe(00.00%),Western Europe(00.00%),Northern Europe(00.00%),Oceania(00.00%),South Asia(00.00%),Domestic Market(00.00%),South America(00.00%),Southeast Asia(00.00%),Africa(00.00%),Mid East(00.00%),Central America(00.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Wireless Communication Module
4. why should you buy from us not from other suppliers?
Own brand: SKYLAB Hardware & Software R&D indepedently OEM/ODM TS16949 - ISO9001 - AEC-Q101 FCC/CE/IC/RoHS Own factory(500 people) Test Firmware patents 15 years RF experiences GNSS Modules. WiFi modules, Bluetooth 5.0 low energy modules
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES;
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian Contact us if you need more details on Wireless Wifi Camera Module. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Usb Wifi Ip Module、Wifi Module For Set Top Box. If these products fail to match your need, please contact us and we would like to provide relevant information.
Power Supply: 3.3V or 5.0V Package: SMD or 4pin/6pin Connector USB 2.0 high speed interface. Supports 72.2 Mbps for 20 MHz and 150 Mbps for 40 MHz channel operations. FCC,CE,IC certificated RoHS certificated meets environment-friendly requirement. 30±0.3(L) x 15±0.3 (W) x 2.4±0.2(H) mm small dimension(WG209-5PS、WG209-5ES、WG209-3PS、 WG209-3ES 30±0.3(L) x 15±0.3 (W) x8.8±0.2(H) mm small dimension(WG209-5P6、WG209-5P4、WG209-5E6、 WG209-5E4、WG209-3P6、WG209-3P4、WG209-3E6、WG209-3E4)
Applications Block Diagram Specification
item | value |
Chipset | MT7601 |
Model Number | WG209 |
Application | set top box/USB wifi camera |
Brand Name | SKYLAB |
Place of Origin | China |
Guangdong | |
dimension | 30(L) x 15(W) x 2.8(H)mm |
Chipset | MT7601 |
Name | SKYLAB 802.11n/ b/g 2.4G USB MT7601 WiFi Direct Module WG209 |
mode | Supported Linux kernel AP/Station drivers |
OS Support | Windows XP 32/64 2000 Vista 32/64bit Windows 7 32/64bit Linux Android |
Compliant to | IEEE 802.11b/g/n WLANs |
Security | WEP 64/128 WPA WPA2 TKIP AES WAPI |
Frequency rate | 2.400-2.500GHz |
Certificate | FCC & CE & IC |
