SKYALB SKG09A High Performance Low Price GSM GPS Module Smallest GPS Tracker Module

Product Description

All from 20% offLimited Time Offers0223:35:27See all productsUS $3.10US $3.88MOQ:10 Piece/Pieces20% offUS $5.29US $5.88MOQ:1 Piece/Pieces10% off Product Description The SKG09A is a complete GPS engine module that features super sensitivity, ultra low power and small form factor. The GPS signal is applied to the antenna input of module, and a complete serial data message with position, velocity and time information is presented at the serial interface with NMEA protocol or custom protocol.
It is based on the high performance features of the single-chip architecture, Its –165dBm tracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GPS was not possible before. The small form factor and low power consumption make the module easy to integrate into portable device like PNDs, mobile phones, cameras and vehicle navigation systems. Applications◆LBS (Location Based Service)
◆PND (Portable Navigation Device)
◆Vehicle navigation system
◆Mobile phone Features◆Ultra high sensitivity: -165dBm
◆Extremely fast TTFF at low signal level
◆Built-in 12 multi-tone active interference canceller
◆Ultra low power consumption
◆±10ns high accuracy time pulse (1PPS)
◆Advanced Features: AlwaysLocate; AIC; EPO;EASY;FLP
◆QZSS, SBAS (WAAS,EGNOS,MSAS,GAGAN)
◆Indoor and outdoor multi-path detection and compensation

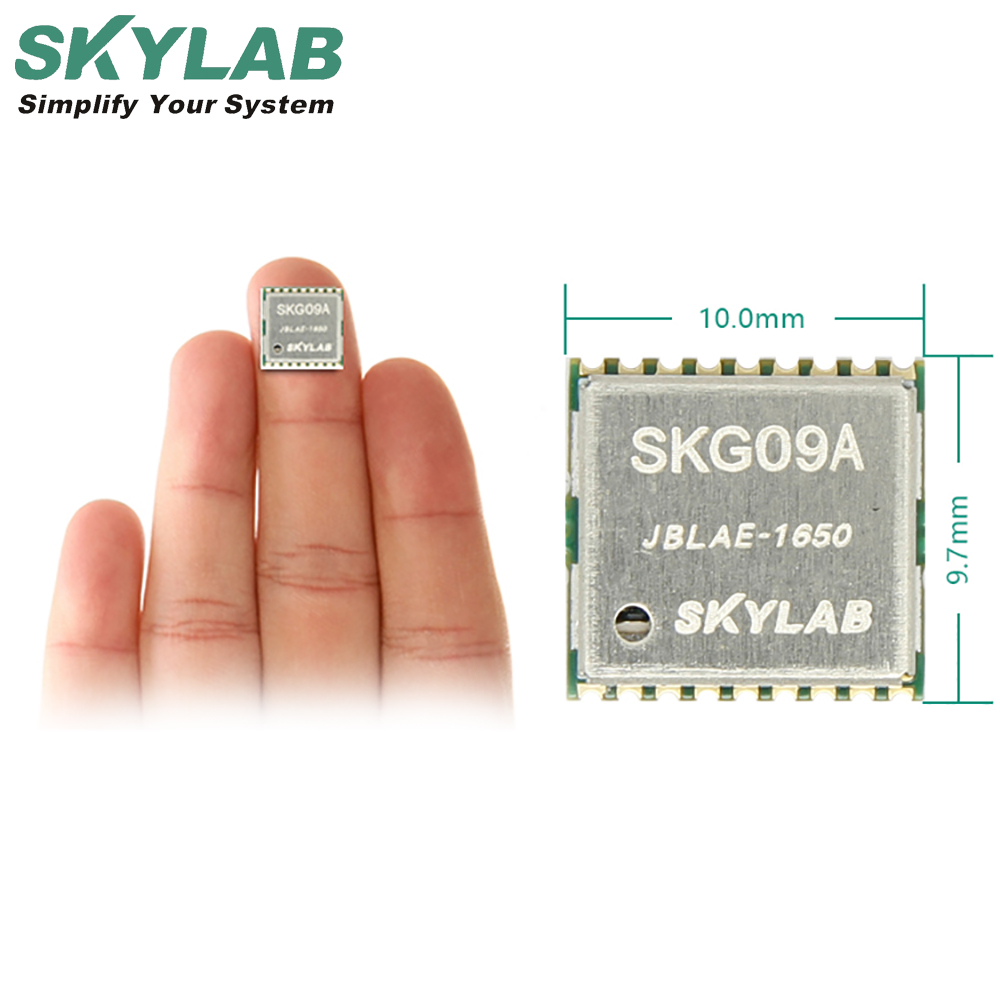

◆Small form factor: 10.1 x 9.7 x 2.2mm
◆RoHS compliant (Lead-free) Specification
item
value
Model Number
SKG09A
Type
integrated circuit
Place of Origin
China
Guangdong
Brand Name
SKYLAB
D/C
NA
Description
GNSS module
Type
LOGIC ICS
Name
Skylab High Performance Low Price GSM GPS Module SKG09A
support walk model
yes
High sensitivity
-162dBm
Operating temperature range
-40 to 85℃
Tiny form factor
10.1 x 9.7 x 2.2mm
Battery
Internal back-up battery
Low Power
50mW
Timing (PPS)
10ns RMS
Receiver Type
L1 frequency band, C/A code, 22 Tracking / 66 Acquisition-Channel

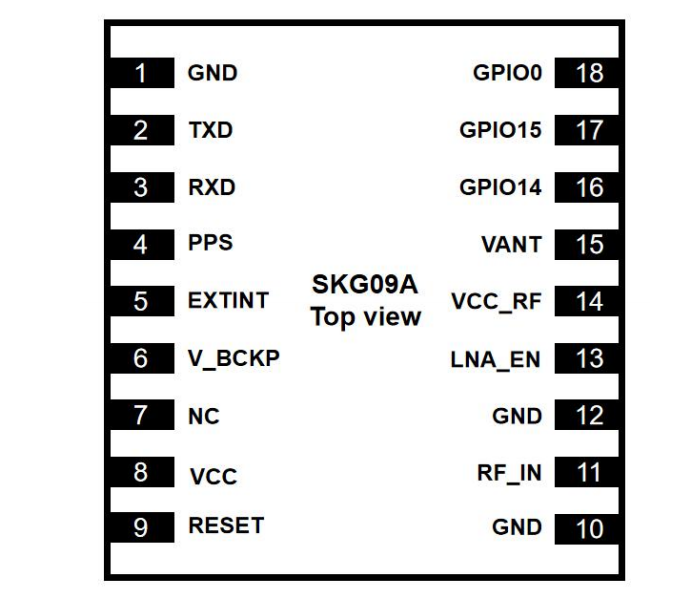

Interfaces ConfigurationPower Supply
Regulated power for the SKG09A is required. The input voltage Vcc should be 3.0V to 4.2V range, current is no less than 100mA. Suitable decoupling must be provided by external decoupling circuitry (10uF and 1uF). It can reduce the Noise from power supply and increase power stability. Main power supply Vcc current varies according to the processor load
and satellite acquisition. Maximum Vcc peak current is about 25 mA during acquisition.Backup Battery Power
In case of a power failure on pin Vcc, real-time clock and backup RAM are supplied through pin V_BCKP. This enables the SKG09A GPS Receiver to recover from power failure with either a hot start or a warm start (depending on the duration of Vcc outage). If no Backup Battery is connected, the receiver performs a cold start upon powered up. Backup Battery Power V_BCKP draws typically 7 uA current in backup state.
Antenna
The SKG09A GPS receiver is designed for supporting the active antenna or passive antenna connected with pin RF_IN. The gain of active antenna should be no more than 25dB (18~20dB Typical). The maximum noise figure should be no more than 1.5dB and output impedance is at 50 Ohm. VCC_RF
Antenna power output pin. When user wants to use external active antenna. The pin supply power for active antenna.

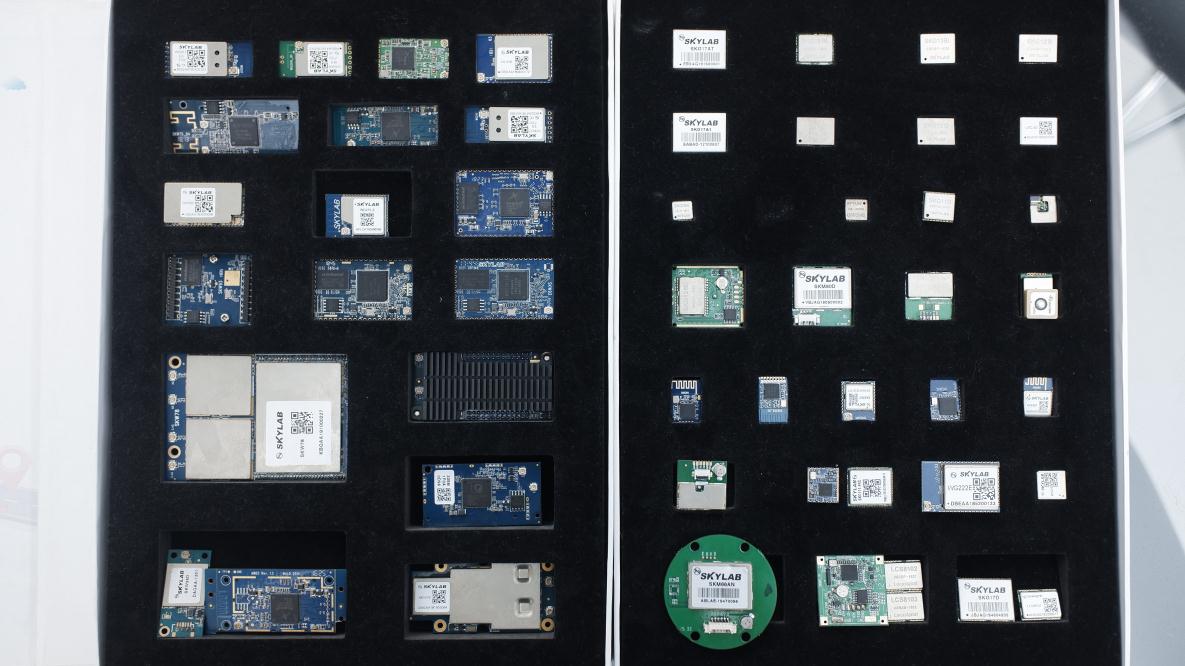

Company Profile SKYLAB M&C Technology Co.,Ltd, specialized in GNSS,WiFi, Bluetooth ,UWB,NB-IoT and other wireless products research and development. Aiming to supply high-quality, high-performance wireless modules and relevant application solutions to domestic and foreign customers who need OEM/ODM and system integrators.Committed to create long-term market value and potential increase for customers. Since 2002, SKYLAB has replied on developing experiences of wireless communication field, build a powerful team that own rich experiences of GNSS/WiFi/Bluetooth/GPRS hardware&software development and RF technology. SKYLAB offer high-quality GPS,Beidou,GLONASS, GALILEO and other GNSS navigation and positioning modules, WIFI Modules, bluetooth modules, including indoor positioning solutions. Secondary development of applications based on module core will cut down customer`s overall cost and offer low-cost wireless devices` solutions. SKYLAB passed ISO-9001 Quality-Control system and TS-16949 automotive industry quality standard system, Germany TUV Nand certification Involved. Since 2002, SKYLAB has replied on developing experiences of wireless communication field, build a powerful team that own rich experiences of GNSS/WiFi/Bluetooth/GPRS hardware&software development and RF technical. SKYLAB offer high-quality GPS,Beidou,GLONASS, GALILEO and other GNSS navigation and positioning modules, WiFi modules, bluetooth modules, including indoor positioning solutions. Secondary development of applications based on module core will cut down customer`s overall cost and offer low-cost wireless devices` solutions. SKYLAB passed ISO-9001 Quality-Control system and TS-16949 automotive industry quality standard system, Germany TUV Nand certification Involved. SKYLAB headquarter is located in Shenzhen, Braches are Scattered in Beijing, Qingdao, Shanghai,Chengdu, Xiamen,Hongkong and USA, Warsaw, Singapore, Russia, Germany,Bombay etc. Provide strong support for customers all-roundly. our certifcates Our advantages FAQ 1. who are we?

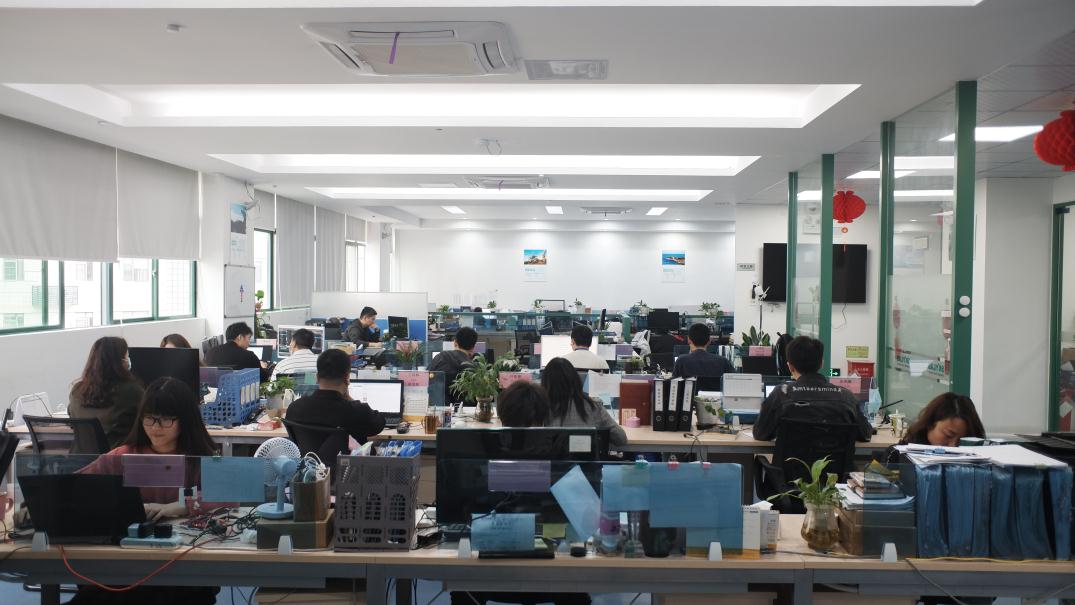

We are based in Guangdong, China, start from 2006,sell to North America(30.00%),Eastern Europe(15.00%),Western Europe(15.00%),Northern Europe(14.00%),Oceania(5.00%),South Asia(5.00%),Domestic Market(5.00%),South America(4.00%),Southeast Asia(3.00%),Africa(00.00%),Mid East(00.00%),Central America(00.00%),Southern Europe(00.00%). There are total about 51-100 people in our office.
