SKYLAB High thoughput Long range 2Mbps Series SoC Bluetooth 5 nRF52840 chipset module

SKYLAB High thoughput Long range 2Mbps Series SoC Bluetooth 5 nRF52840 chipset module  Product Description Ready for Bluetooth 5 and high grade IoT security

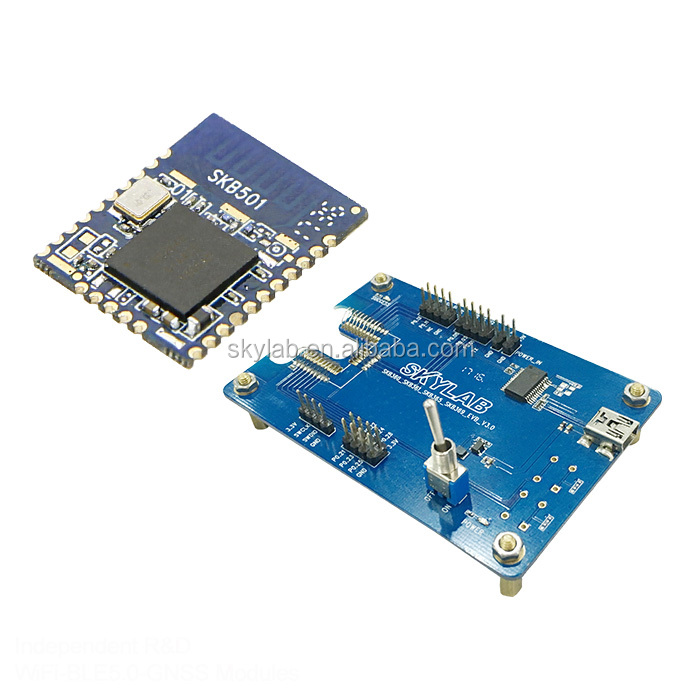

The SKB501 is an advanced, highly flexible single chip solution for today’s increasingly demanding ULP wireless applications for connected devices on our person, connected living environments and the IoT at large. It is designed ready for the major feature advancements of Bluetooth® 5 and takes advantage of Bluetooth 5’s increased performance capabilities which include long range and high throughput modes. Inherent industry-grade security is essential in today’s applications.
Bluetooth 5 – Bluetooth low energy further and faster
The nRF52840 is ready to take advantage of the considerable performance improvements for Bluetooth low energy with the arrival of the Bluetooth 5 specification. Of greatest importance is the support for longer range (up to x4 compared to Bluetooth 5.0) and doubling of on-air data-rate, up to 2Mbs from 1Mbs in Bluetooth 5.0
Wide protocol support with addition of 802.15.4
The 802.15.4 PHY and MAC layers are supported natively on the nRF52840. This allows nRF52840 to be used in a wide range of home and industrial sensor network applications as it supports two of the most popular wireless sensor standards in use today, Bluetooth low energy and 802.15.4 derivatives. This adds to the already existing radio support for Bluetooth low energy, ANT/ANT+ and 2.4GHz for proprietary.

Hardware Features
Model	SKB501
ANTenna Type	PCB Antenna or IPEX connector
Chipset Solution	nRF52840
Voltage	1.7V~3.6V
Dimension(L×W×H)	17.4×13.7×1.9 mm
Wireless Features
Wireless Standards	Bluetooth 5/ANT
Frequency Range	2400MHz---2483.5MHz
Data Rates	1Mbps(Bluetooth 5)
Modulation Technique	GFSK Modulation(Bluetooth 5)
Wireless Security	AES HW Encryption
Transmit Power	Tx Power -20 to +8 dBm in 4 dB Steps(Bluetooth ® 5.0)
Work Mode	Central/Peripheral(Bluetooth ® 5.0)
Others
Certification	RoHS
Environment	Operating Temperature: -40℃~85℃
	Storage Temperature: -40℃~125℃
	Operating Humidity: 10%~90% Non-condensing
	Storage Humidity: 5%~90% Non-condensing

Features
Bluetooth 5 ready multi-protocol radio
Bluetooth 5 datarate support: 2Mbs, 1Mbs, 500Kbs, 125Kbs
Support ANT Protocol
32-bit ARM Cortex-M4F @ 64MHz
Up to 111 dB link budget for Bluetooth long range mode
NFC-A on-chip
Programmable output power from +8dBm to -20dBm
-96dBm Sensitivity for Bluetooth low energy
RSSI
Wide supply voltage range +5.5v to 1.7v
Full selection of interfaces SPI/UART/PWM
Programmable Peripheral Interface - PPI
High speed SPI interface 32MHz
EasyDMA for all digital interfaces
12bit/200K SPS ADC
128 bit AES/ECB/CCM/AAR co-processor
20 General Purpose I/O pins
SPI Master/Slave
Two-wire Master (I2C compatible)
UART (CTS/RTS)
RoHS compliance (Lead-free)
