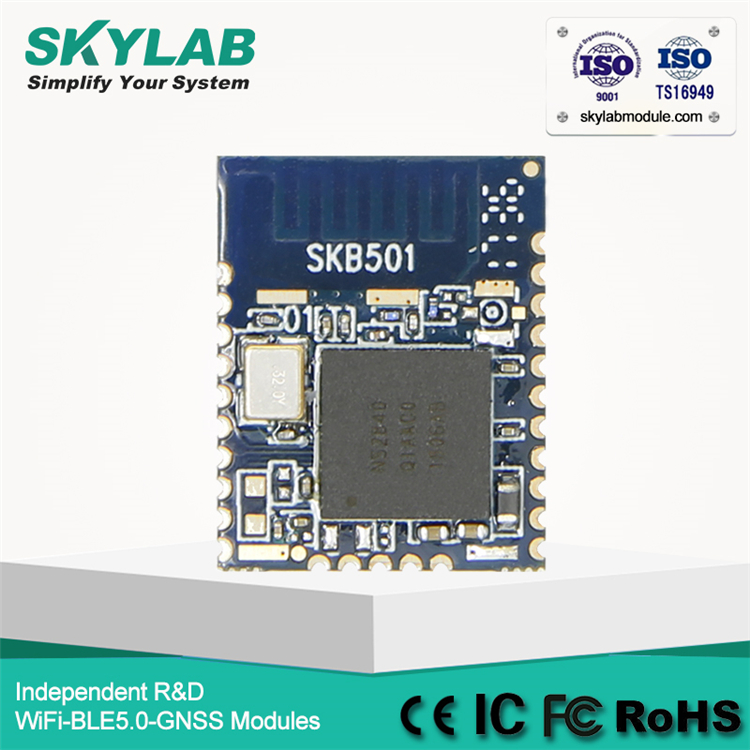

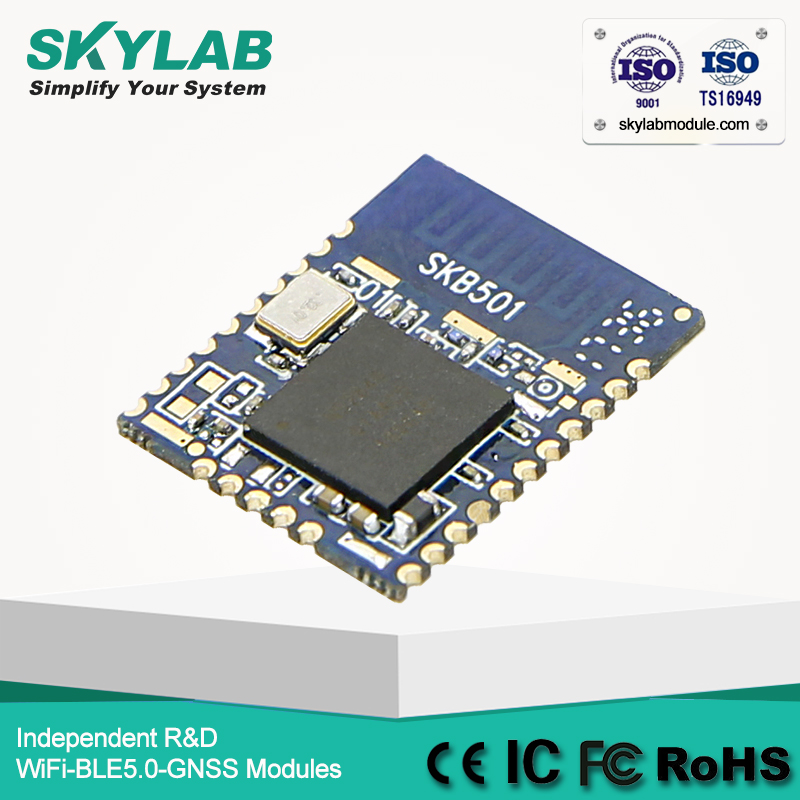

SKYLAB Wholesale Nordic nRF52840 Low Energy Transmitter Receiver Bluetooth 2.4GHz Module best price
Product Description
nRF52840 Low Energy Transmitter Receiver Bluetooth Module With Factory Wholesale Price | |
Hardware Features | |
Model | SKB501 |
ANTenna Type | PCB Antenna or IPEX connectorf |
Chipset Solution | nRF52840 |
Voltage | 1.7V~3.6V |

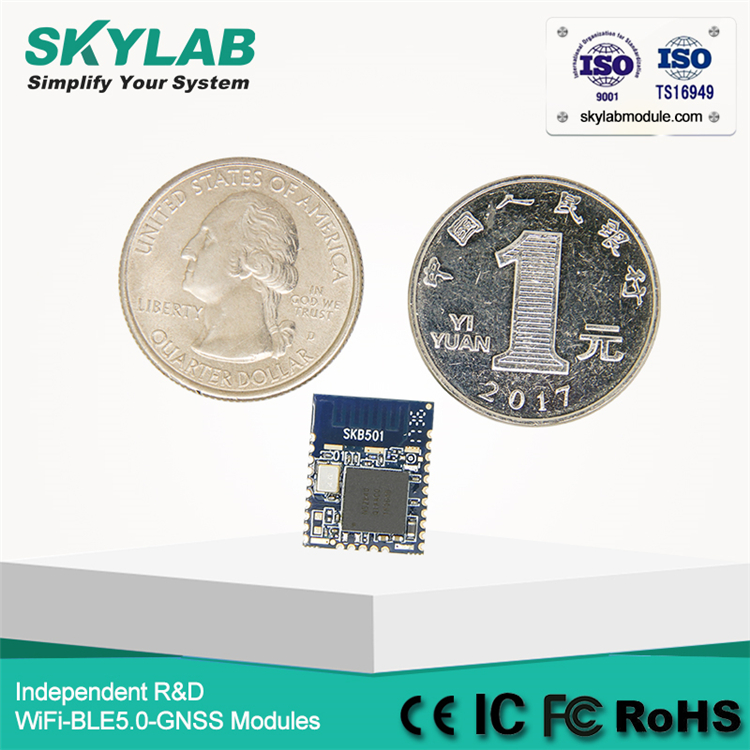

Dimension(L×W×H) | 17.4×13.7×1.9 mm |
Wireless Features | |
Wireless Standards | Bluetooth 5/ANT |
Frequency Range | 2400MHz---2483.5MHz |
Data Rates | 1Mbps(Bluetooth 5) |
Modulation Technique | GFSK Modulation(Bluetooth 5) |
Wireless Security | AES HW Encryption |
Transmit Power | Tx Power -20 to +8 dBm in 4 dB Steps(Bluetooth ® 5.0) |
Work Mode | Central/Peripheral(Bluetooth ® 5.0) |
Others | |
Certification | RoHS |
Environment | Operating Temperature: -40℃~85℃ |
Storage Temperature: -40℃~125℃ | |
Operating Humidity: 10%~90% Non-condensing | |
Storage Humidity: 5%~90% Non-condensing | |
Ready for Bluetooth 5 and high grade IoT securityThe SKB501 is an advanced, highly flexible single chip solution for today’s increasingly demanding ULP wireless applications for connected devices on our person, connected living environments and the IoT at large. It is designed ready for the major feature advancements of Bluetooth® 5 and takes advantage of Bluetooth 5’s increased performance capabilities which include long range and high throughput modes. Inherent industry-grade security is essential in today’s applications. Bluetooth 5 – Bluetooth low energy further and fasterThe nRF52840 is ready to take advantage of the considerable performance improvements for Bluetooth low energy with the arrival of the Bluetooth 5 specification. Of greatest importance is the support for longer range (up to x4 compared to Bluetooth 5.0) and doubling of on-air data-rate, up to 2Mbs from 1Mbs in Bluetooth 5.0 Wide protocol support with addition of 802.15.4The 802.15.4 PHY and MAC layers are supported natively on the nRF52840. This allows nRF52840 to be used in a wide range of home and industrial sensor network applications as it supports two of the most popular wireless sensor standards in use today, Bluetooth low energy and 802.15.4 derivatives. This adds to the already existing radio support for Bluetooth low energy, ANT/ANT+ and 2.4GHz for proprietary. | nRF52840 Low Energy Transmitter Receiver Bluetooth Module With Factory Wholesale Price |
| Features |
| 1. Bluetooth 5 ready multi-protocol radio 2. Bluetooth 5 datarate support: 2Mbs, 1Mbs, 500Kbs, 125Kbs 3. Support ANT Protocol 4. 32-bit ARM Cortex-M4F @ 64MHz 5. Up to 111 dB link budget for Bluetooth long range mode 6. NFC-A on-chip 7. Programmable output power from +8dBm to -20dBm 8. -96dBm Sensitivity for Bluetooth low energy 9. RSSI 10. Wide supply voltage range +5.5v to 1.7v 11. Full selection of interfaces SPI/UART/PWM 12. Programmable Peripheral Interface - PPI 13. High speed SPI interface 32MHz 14. EasyDMA for all digital interfaces 15. 12bit/200K SPS ADC 16. 128 bit AES/ECB/CCM/AAR co-processor 17. 20 General Purpose I/O pins 18. SPI Master/Slave 19. Two-wire Master (I2C compatible) 20. UART (CTS/RTS) 21. RoHS compliance (Lead-free) 22. FCC,CE compliance |
| Applications |
1. Computer peripherals and I/O devices Mouse Keyboard Multi-touch trackpad 2. Interactive entertainment devices Remote control 3D Glasses Skylab M&C Technology Co., Ltd Multiprotocol Bluetooth 5.0/ANT Low Energy Module Datasheet Model No.:SKB501 6 / 18 SKB501-DA-001,A/1 Gaming controller 3. Advanced wearables Connected watches Advanced personal fitness devices Wearables with wireless payment Connected Health Virtual/Augmented Reality applications 4. IoT Smart Home sensors and controllers Industrial IoT sensors and controllers |
