SKYLAB low cost Nordic Nrf52832 Chip Spi Bluetooth 4.2 host Bluetooth low power remote control for Indoor Location
Product Description
SKYLAB low cost Nordic Nrf52832 Chip Spi Bluetooth 4.2 host Bluetooth low power remote control for Indoor Location Product Description

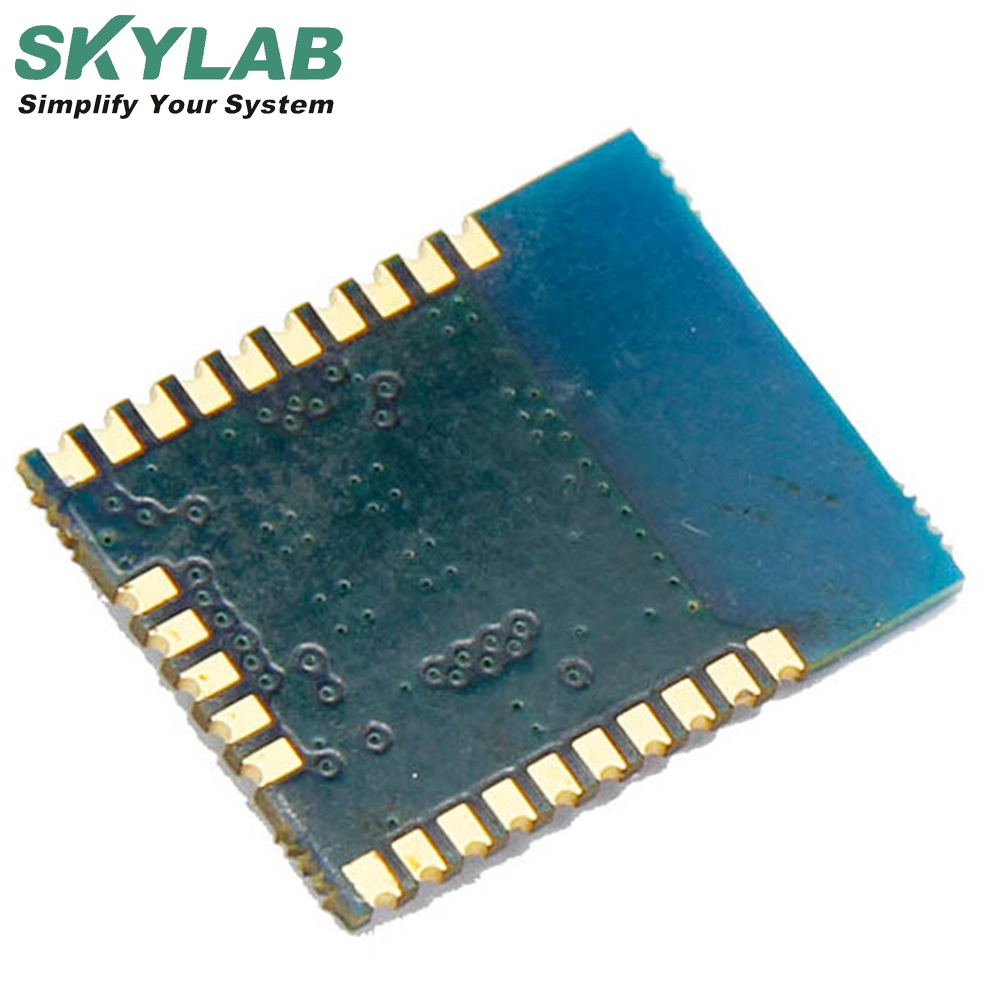

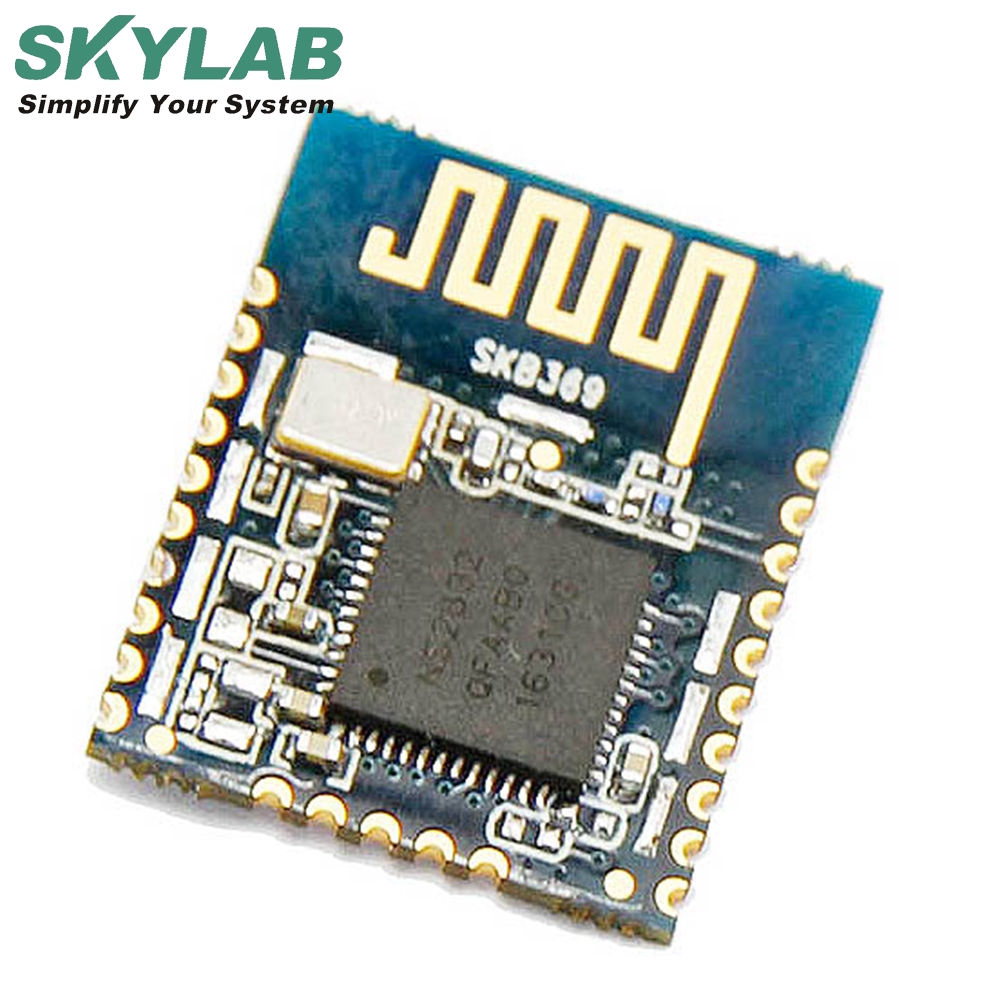

The SKB369 is a highly integrated Bluetooth 4.2 BLE module, designed for high data rate, short-range wireless communication in the 2.4GHz ISM band. Also, SKB369 support ANT Protocol. The module is based on Nordic nRF52832 radio Transceiver IC, has a 32 bit ARM Cortex-M4F CPU, Flash memory and analog and digital peripherals. The SKB369 provides a low power and ultra-low cost BLE solution for wireless transmission applications. The SKB369 also has a NFC-A tag interface for OOB pairing. Features 1.Main Chip: nRF52832 2.Bluetooth® 4.2 low energy single-mode protocol stack (1) L2CAP, ATT, GAP, GATT and SM protocols (2) Central and Peripheral roles (3) GATT Client and Server (4) Full SMP support including MITM and OOB pairing 3.Support ANT Protocol 4.Supported data rates up to 1Mbps 5.Support NFC-A 6.8/10/12bit ADC-6configurable channels 7.19 General Purpose I/O pins 8.SPI Master/Slave 9.Two-wire Master (I2C compatible) 10.UART (CTS/RTS) 11.CPU independent Programmable Peripheral Interconnect (PPI) 12.Quadrature Decoder (QDEC) 13.AES HW encryption 14.RoHS Compliant

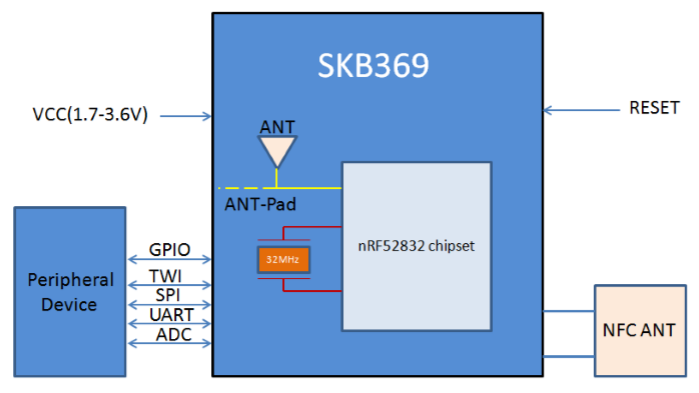

Application Block Diagram
Hot sale product
Test & Certificates
Our Service
Project Development
SKYLAB Team
FAQ
Contact Us
Contact us if you need more details on Bluetooth Amplifier Module. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Best Selling Bluetooth Switch Module、Skylab Hot Sales Small Bluetooth Module. If these products fail to match your need, please contact us and we would like to provide relevant information.
The SKB369 is a highly integrated Bluetooth 4.2 BLE module, designed for high data rate, short-range wireless communication in the 2.4GHz ISM band. Also, SKB369 support ANT Protocol. The module is based on Nordic nRF52832 radio Transceiver IC, has a 32 bit ARM Cortex-M4F CPU, Flash memory and analog and digital peripherals. The SKB369 provides a low power and ultra-low cost BLE solution for wireless transmission applications. The SKB369 also has a NFC-A tag interface for OOB pairing. Features 1.Main Chip: nRF52832 2.Bluetooth® 4.2 low energy single-mode protocol stack (1) L2CAP, ATT, GAP, GATT and SM protocols (2) Central and Peripheral roles (3) GATT Client and Server (4) Full SMP support including MITM and OOB pairing 3.Support ANT Protocol 4.Supported data rates up to 1Mbps 5.Support NFC-A 6.8/10/12bit ADC-6configurable channels 7.19 General Purpose I/O pins 8.SPI Master/Slave 9.Two-wire Master (I2C compatible) 10.UART (CTS/RTS) 11.CPU independent Programmable Peripheral Interconnect (PPI) 12.Quadrature Decoder (QDEC) 13.AES HW encryption 14.RoHS Compliant | Hardware Features | |
| Model | SKB369 |
| Antenna Type | PCB Antenna |
| Chipset solution | nRF52832 |
| Voltage | 1.7V-3.6V |
| Dimension(L×W×H) | 17.4×13.7×1.9 mm |
| Wireless Features | |
| Wireless Standards | Bluetooth ® 4.2, ANT |
| Frequency Range | 2400MHz---2483.5MHz |
| Data Rates | 1Mbps (Bluetooth ® 4.2) |
| Modulation Technique | GFSK Modulation (Bluetooth ® 4.2) |
| Wireless Security | AES HW Encryption |
| Transmit Power | Tx Power -20 to +4 dBm in 4 dB Steps (Bluetooth ® 4.2) |
| Work Mode | Central/Peripheral (Bluetooth ® 4.2) |
| Others | |
| Certification | RoHS |
| Environment | Operating Temperature: -25℃~75℃ |
| Storage Temperature: -40℃~85℃ | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
Application Block Diagram Hot sale product Test & Certificates | For more company information. Please click | contact us> |
| For more Our Service information. Please click | contact us> |
| For more Project Development information. Please click | contact us> |
| For more Company information. Please click | contact us> |
Contact Us Contact us if you need more details on Bluetooth Amplifier Module. We are ready to answer your questions on packaging, logistics, certification or any other aspects about Best Selling Bluetooth Switch Module、Skylab Hot Sales Small Bluetooth Module. If these products fail to match your need, please contact us and we would like to provide relevant information. Product Categories : Bluetooth Low Energy Modules > Bluetooth Low Energy Modules
