Home > Products > Beacon Compatible with Eddystone and ibeacon > SKYLAB wholesale Nordic nrf52832 Programmable BLE bluetooth Beacon

SKYLAB wholesale Nordic nrf52832 Programmable BLE bluetooth Beacon

Product Description

Specification
Hardware features
module
VG05
Type of antenna
PCB antenna
battery
ER14250 2 * 1200 mah
 voltage
3.6V
size
52.1 * 23.1(±0.3)mm
Wireless capabilities
Wireless standards
 * Bluetooth ® 4.2
frequency range
2400——-2483.5MHz
data rate
250 kbps / 1 Mbps / 2 Mbps
modulation technique
GFSK modulation
Wireless security
 * AES encryption HW
transmission power
 * Tx power increases by 4dBm in the range of -20 to +4 dBm
Sensitivity
-93dBm at 1Mbps BLE
other
 * Operating temperature :-40℃~ 85℃
 * Storage temperature :-40℃~ 85℃
 * Working humidity :10%~90% no condensation
 * Storage humidity :5%~90% no condensation

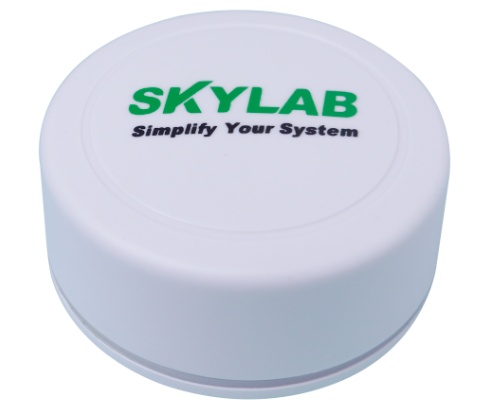

Product Details VG05 is a bluetooth beacon device.Bluetooth beacons use BLE low power bluetooth radio The method utilizes its supported generic properties profile in the 37th, 38th, and 39th channels Continuously sending astatic broadcast packets on.The broadcast content can be developed by our r&d team APP Skylab_xbeacon" reads, including UUID, Major, Minor, RSSI And other information. VG05 is based on Nordic BLE 4.2 chip.Its interior consists of two ER14250 batteries Power supply, battery life and VG05 broadcast parameters. * VG05 featuresLow power consumption
Small size, light weight, beautiful shape
APP can configure parameters flexibly
Easy installation (magnetic absorption /3M adhesive installation)
The broadcast range is up to 100 meters
Compliance with RoHS (lead-free)
FCC, CE * VG05 applicationIndoor positioning
information acceptance
identification
WeChat, shake Packing & Delivery into a standard shipping box Module test Our factory Our team Recommended by sellerSKYLAB Nordic N52832 Bluetooth Ble Beacon for tracking people$5.41 - $5.56 / Piece100 PiecesSkylab GPS integrated Antenna Module SKM52 small GPS Tracker chip GNSS Module$6.56 - $7.56 / Piece5.0 PiecesSKYLAB High thoughput Long range 2Mbps Series SoC Bluetooth 5 nRF52840 chipset module$5.36 - $7.55 / Piece100 Pieces FAQ Contact Us
