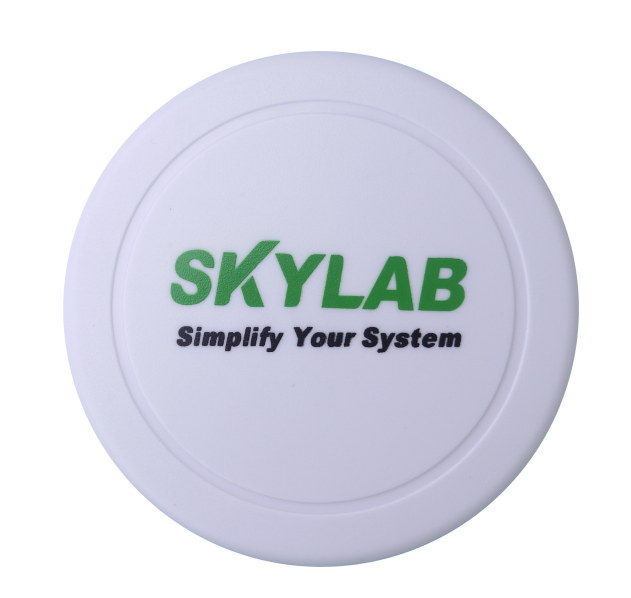

SKYLAB Accelerometer Asset tracking temperature sensor beacon waterproof ibeacon BLE 4.2 Beacon

Product Description

All from 20% offLimited Time Offers0222:59:03See all productsUS $3.10US $3.88MOQ:10 Piece/Pieces20% offUS $5.29US $5.88MOQ:1 Piece/Pieces10% off Product Description VG05 is a Bluetooth Beacon device. It uses a broadcasting protocol which is based on BLE (Bluetooth Low Energy ). VG05 broadcasts its general cofig parameters like UUID, Major, Minor, RSSI etc. to surroundings over 37, 38 and 39 BLE channels continuously and non-directionally . The broadcasting information can be read by “Skylab_xbeacon” APP, which is designed by Skylab R&D Team. VG05 Internal Module IntroductionVG05 is based on Nordic Bluetooth 4.2 chip. It is powered by 2 ER14250 batteries. Its battery life is related to the internal broadcasting parameters.
VG05 FeaturesLow Power Consumption
Small,Lightweight,Beautiful appearance
Flexible Application
Easy to Install(use 3M sticky tape)
Advertise Range up to 100 Meters
RoHS compliance (Lead-free)
FCC,CE compliance VG05 ApplicationIndoor Positioning
Information Push
Identification
WeChat Shake Specification
item
value
Model Number
VG05
Type
Bluetooth 4.2
Country of Origin
china
Brand
SKYLAB
Chipset
Nordic nRF52832
Application
asset tracking/Indoor Positioning
Antenna Type
PCB Antenna
Battery
ER14250 2*1200mAh
Transmit distance
100m
Voltage
3.6V
Wireless Standards
Bluetooth 4.2
Frequency Range
2400MHz---2483.5MHz
Data Rates
250kbps/1Mbps/2Mbps
Modulation Technique
GFSK Modulation
Sensitivity
-93dBm at 1 Mbps BLE
Transmit Power
Tx Power -20 to +4 dBm in 4 dB Steps
Hardware GuideVG05 Power on
VG05 will power on as soon as any one of its 2 batteries is correctly installed. By default , 2 ER14250 battery will be pre-installed before it arrives at customers’ hand. If you need to change its batteries, please follow the instruction below.

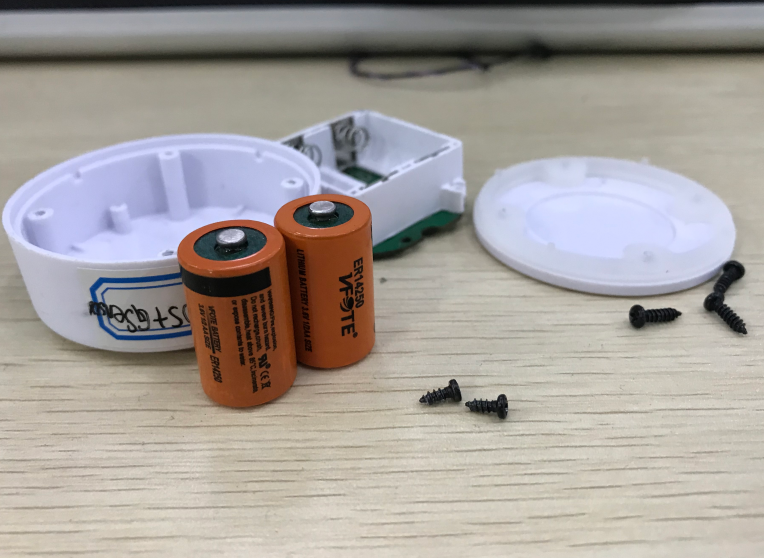

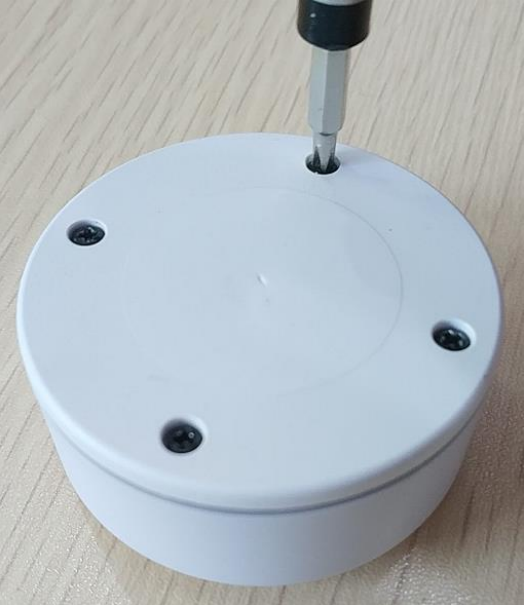

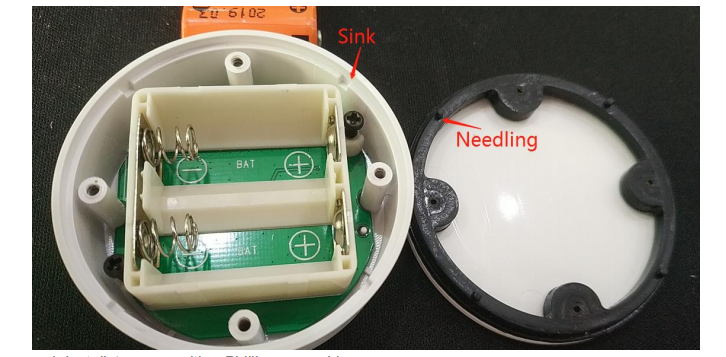

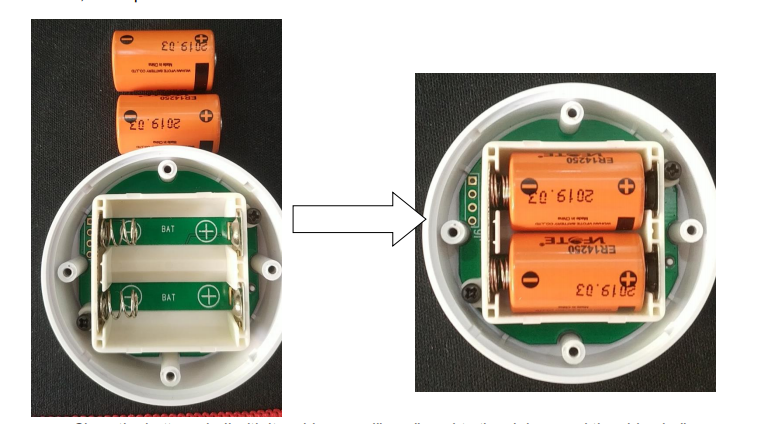

1. Remove 4 screws with a Phillips screwdriver 2. Open the bottom shell of the VG05, follow the Battery polarity on the bottom of the battery cell, and replace its 2 ER14250Li-Batteries. 3. Close the bottom shell with its rubber needling aligned to the sink around the side-shell. 4. Install 4 screws with a Phillips screwdriver. Hot Sales Product view more >>Similar ItemsSKYLAB 70-100m distance smallest bluetooth ibeacon tag eddystone gateway BLE 5.0 beacon for asset tracking$5.22 - $5.62 / Piece3 PiecesSKYLAB low power Temperature Humidity Monitoring BLE 4.2 Wireless bluetooth Sensor Beacon Tag$12.37 - $12.68 / Piece1 PieceSKYLAB wholesale Ble 4.2 Sos Trigger Button Temperature And Humidity Sensor bluetooth Beacon$5.65 - $6.89 / Piece1 PieceSKYLAB Wireless Ethernet IOT 5.0 ble gateway Wifi Ble Gateway 4G LTE bluetooth WiFi Gateway$43.68 - $65.00 / Piece2 PiecesSKYLAB new arrival smart home 4g goip gsm lte IOT bluetooth gateway$35.00 - $38.00 / Piece5 PiecesSKYLAB Application Development smart home gsm zigbee bluetooth Gateway$45.00 - $56.00 / Piece3 Pieces Company Profile SKYLAB M&C Technology Co.,Ltd, specialized in GNSS,WiFi, Bluetooth ,UWB,NB-IoT and other wireless products research and development. Aiming to supply high-quality, high-performance wireless modules and relevant application solutions to domestic and foreign customers who need OEM/ODM and system integrators.Committed to create long-term market value and potential increase for customers. Since 2002, SKYLAB has replied on developing experiences of wireless communication field, build a powerful team that own rich experiences of GNSS/WiFi/Bluetooth/GPRS hardware&software development and RF technology. SKYLAB offer high-quality GPS,Beidou,GLONASS, GALILEO and other GNSS navigation and positioning modules, WIFI Modules, bluetooth modules, including indoor positioning solutions. Secondary development of applications based on module core will cut down customer`s overall cost and offer low-cost wireless devices` solutions. SKYLAB passed ISO-9001 Quality-Control system and TS-16949 automotive industry quality standard system, Germany TUV Nand certification Involved. Since 2002, SKYLAB has replied on developing experiences of wireless communication field, build a powerful team that own rich experiences of GNSS/WiFi/Bluetooth/GPRS hardware&software development and RF technical. SKYLAB offer high-quality GPS,Beidou,GLONASS, GALILEO and other GNSS navigation and positioning modules, WiFi modules, bluetooth modules, including indoor positioning solutions. Secondary development of applications based on module core will cut down customer`s overall cost and offer low-cost wireless devices` solutions. SKYLAB passed ISO-9001 Quality-Control system and TS-16949 automotive industry quality standard system, Germany TUV Nand certification Involved. SKYLAB headquarter is located in Shenzhen, Braches are Scattered in Beijing, Qingdao, Shanghai,Chengdu, Xiamen,Hongkong and USA, Warsaw, Singapore, Russia, Germany,Bombay etc. Provide strong support for customers all-roundly. our certifcates Our advantages FAQ 1. who are we?
