SKYLAB High Speed 1200Mbps Gigabit 11AC MT7621 openWRT wifi module for wireless long range wifi router
Product Description

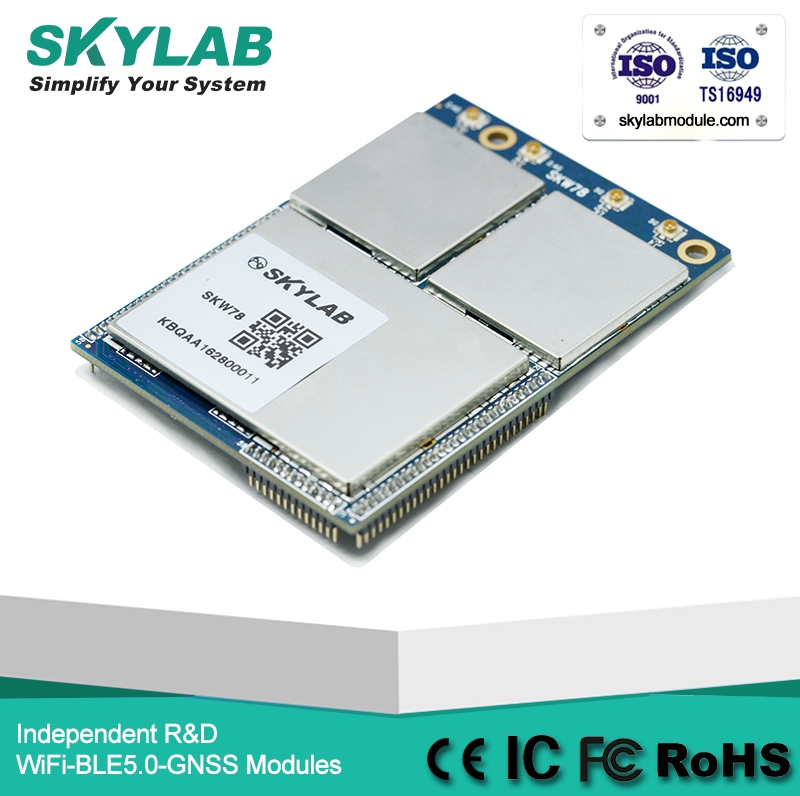

SKYLAB High Speed 1200Mbps Gigabit 11AC MT7621 openWRT wifi module for wireless long range wifi router Product Description The SKW78 module compliant to 802.11 a/b/g/n/ac Wi-Fi Solution, It integrates a dual-core MIPS1004Kc (880MHz), 3-port GbE switch, USB2.0, SD-XC. The module is suitable for 802.11ac, LTE cat4/5, edge, hotspot, VPN, AC (Access Control). For consumer electronic devices, the module requires only an external 3.3V power supply. The module integrates a 2.4GHz 2x2 MIMO WLAN chip with internal PA and LNA and integrates a 5GHz 2x2 MIMO WLAN chip with internal PA and LNA. It supports 2.4GHz operations up to 144 Mbps for 20 MHz and 300Mbps for 40 MHz channel respectively, and supports 5GHz operations up to 866 Mbps for 80 MHz channel respectively. The module support Bridge mode and AP/Client mode and Gateway mode.
1.IEEE 802.11 a/b/g/n and 802.11ac draft compliant 2.Dual-band 4T4R mode with data rate up to 1167Mbps 3.2.4G band 2T2R Mode with support for a 300Mbps TX/RX PHY rate 4.5G band 2T2R Mode with support for a 867Mbps TX/RX PHY rate 5.DDR3 memory up to 1024Mb 6.Flash memory up to 128Mb 7.2 LAN ports and 1 WAN port with 1000Mbps PHY 8.Firmware: Linux 2.6 SDK, Open WRT 9.Support WAN/LAN/USB/I2C/I2S/SD interfaces 10.Support 20MHz, 40MHz, 80MHz bandwidth 11.Security: WEP64/128, TKIP, AES, WPA, WPA2,WAPI 12.Support AP/Client/Router mode 13.RoHS compliance meets environment-friendly requirement 14.71-pin header 15.75.0mm(L) x 52.3mm(W) x 9.0mm(H) dimension Specifications | Hardware Features | |
| Model | SKW78 |
| Antenna Type | IPEX |
| Chipset solution | MT7621A |
| Voltage | 3.3V±5% |
| Dimension(L×W×H) | 75.0 x 52.3 x 9.0mm |
| Wireless Features | |
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency Range | 2412GHz---24884MHz & 5180---5825MHz |
| Data Rates | IEEE 802.11b : 1,2,5.5,11Mbps |
| IEEE 802.11g : 6,9,12,18,24,36,48,54Mbps | |
| IEEE 802.11n : MCS0--MCS7 @ HT20 / 2.4GHz band | |
| MCS0--MCS7 @ HT40 /2.4GHz band | |
| MCS0--MCS9 @ HT40 /5GHz band | |
| IEEE 802.11ac : MCS0--MCS9 @ HT80 /5GHz band | |
| Receiver Sensitivity | HT80 MCS9 : -60dBm@10% PER(MCS9) /5GHz band |
| HT40 MCS9 : -63dBm@10% PER(MCS9) /5GHz band | |
| HT40 MCS7 : -70dBm@10% PER(MCS7) /2.4GHz band | |
| HT20 MCS7 : -73dBm@10% PER(MCS7) /2.4GHz band | |
| 54M: -76dBm@10% PER | |
| 11M: -88dBm@ 8% PER | |
| Modulation Technique | DSSS (DBPSK, DQPSK, CCK) |
| OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 125-QAM, 256-QAM) | |
| Wireless Security | WPA/WPA2, WEP, TKIP and AES, WPS2.0, WAPI |
| Transmit Power | IEEE 802.11ac: 13dBm @HT80 MCS9 /5GHz band |
| IEEE 802.11ac: 17dBm @HT80 MCS0 /5GHz band | |
| IEEE 802.11n: 15dBm @HT20/40 MCS7 /5GHz band | |
| IEEE 802.11n: 17dBm @HT20/40 MCS0 /5GHz band | |
| IEEE 802.11n: 16dBm @HT20/40 MCS7 /2.4GHz band | |
| IEEE 802.11g: 16dBm @54MHz | |
| IEEE 802.11b: 18dBm @11MHz | |
| Work Mode | Bridge/Gateway/AP Client |
| Others | |
| Certification | RoHS |
| Environment | Operating Temperature: -20℃~55℃ |
| Storage Temperature: -40℃~125℃ | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
